Brompton 3 speed cable - M-type - 2017 onwards
Not sure of your handlebar type? Check out our Brompton handlebar type guide
Brompton 2017 onwards hub gear cable for Sturmey Archer, Sachs, SRAM 3 speed rear wheel (also for Sachs / Sturmey Archer 6 speed system when used in conjunction with the Brompton 2 speed derailleur) - for use with the integrated gear shifter
On the 2017 model (introduced late 2016) Brompton introduced a new integrated brake lever and gear shifter - this is the cable for those gear shifters
Better pictures coming very soon!

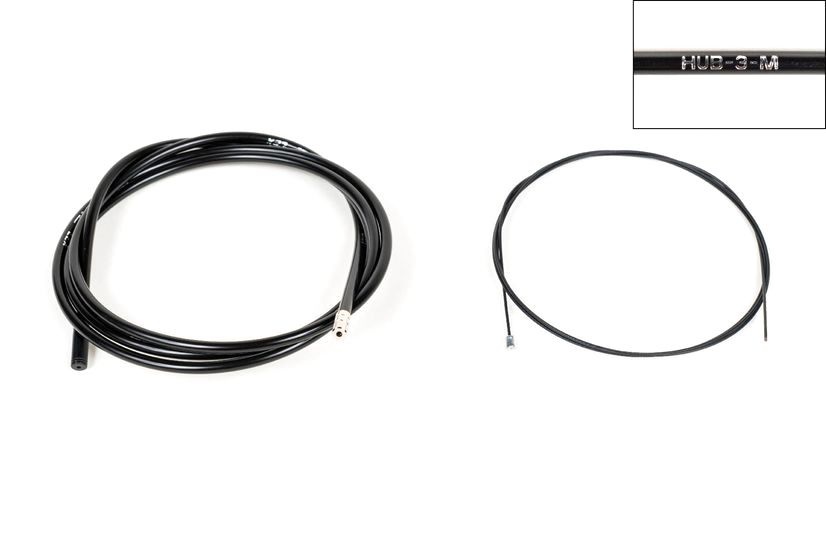

What's in the pack? |
Comprises:
- Cable inner - length 1424mm
- Cable outer - length 1265mm
HUB-3-M
Colour: Black
Installation: |
Tools required:
- 8mm spanner to remove the existing cable inner from the cable anchor and to re-attatch
- Cable cutter / pliers to remove the end cap from existing cable if one is installed
One end of the cable outer has a silver end and one has a black end
The silver end goes into the shifter / trigger
The black end goes into the cable pulley
We made this video on how to install this Brompton hub gear cable
Brompton 2020 Q part code: Q100631
Brompton Q part code: QGSCAB3HUB-M
Brompton part number: 9002726
