Orbea Orbea Wild FS 20 Linkage Kit
This is the Wild FS hardware kit for the swingarm main pivot point, as show in the attached technical diagram as Part Number 9. This kit is compatible with the following Orbea bicycles:
Orbea Wild FS Carbon 2020
Orbea Wild FS Hydro (aluminium) 2020

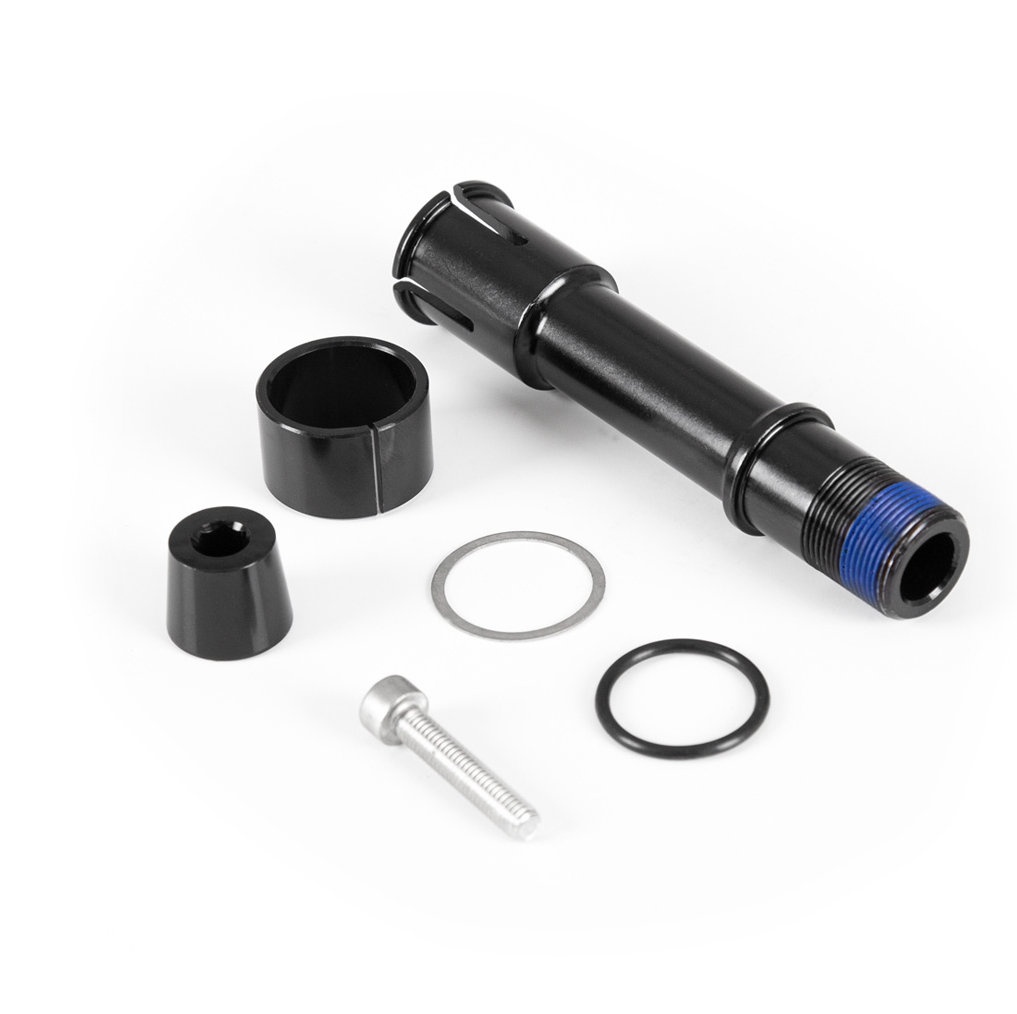

This kit consists of the following parts:
M5 x 20 bolt (9.1 in the diagram) x 1
Expander cone main pivot (9.2 in the diagram) x 1
Main pivot Axle (9.3 in the diagram) x 1
Washer 20 x 23 x 0.5 (9.4 in the diagram) x 1
O-Ring (9.5 in the diagram) x 1
Pre-load bushing main pivot (9.6 in the diagram) x 1
This hardware kit does not induce the bearings that are used, these can be ordered separately as the main axle bearing kit (Y0000206)
If you are not sure if this is the right kit for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.
Known by Orbea as: WILD FS 20 LINKAGE BEARING KIT
Colour: Black
