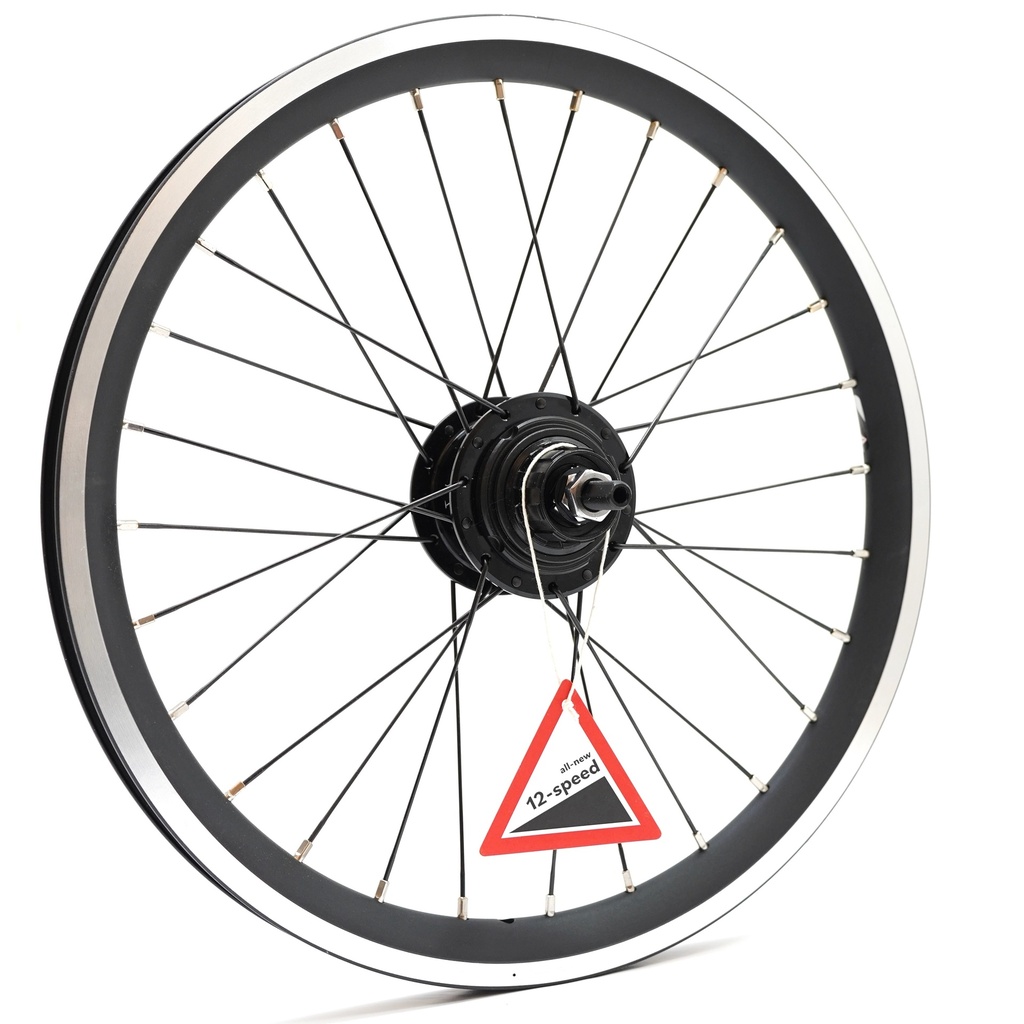

Brompton Ultralight 12 speed rear wheel
Please note: This is the Brompton 12 speed ultralight wheel only
What's included in the package?
|
This rear wheel is the result of colaboration between Brompton and Sturmey Archer - it's the wheel used on the new (launched in 2024) 12 speed Brompton folding bikes
Are you buying this wheel for a 4 to 12 speed upgrade?If yes - you will also need the following parts:
|
Note:
The gear indicator chain is specifically made for Brompton for the 12 speed range of wheels and is different to the indicator chain used on previous Brompton 3 speed hub geared wheels (e.g. Brompton Wide Ratio - BWR, Brompton Standard Ratio - BSR) - the gear indicator chain is marked with an X
The Brompton sprocket stack is a separate item (not included) and can be found on the "related stuff" tab - this is because there is a choice of a single speed or four speed sprocket set as standard from Brompton. You may also wish to reuse your existing sprockets
|
Another Note: The Brompton 12 speed Ultralight wheel is only compatible with the advance rear frame found on the Brompton P Line and the Brompton T Line |
Brompton Ultralight 12 speed rear wheel specification:
- Colour: Black
- Spokes: 28
- Valve hole: Presta valve - 6mm
- Weight: 1.25kg (approx)
- Rim: Aero style (requires more accurate setup of brakes)
The method for setting up the hub gears is the same as the standard 3 speed (BWR and BSR) - we made a video showing how do to it:
If you are using the wheel for a 4-speed to 12-speed upgrade on your Brompton - we made a video showing the process
Brompton 2024 Q part code:Q103204
Made for Brompton by SunRace Sturmey Archer
