Brompton right hand non folding pedal - silver
Brompton right hand pedal (as you sit on the bike) - non-folding (it's the left hand one that folds) - silver (now also available as black non-folding pedal)
Note: Scales not included

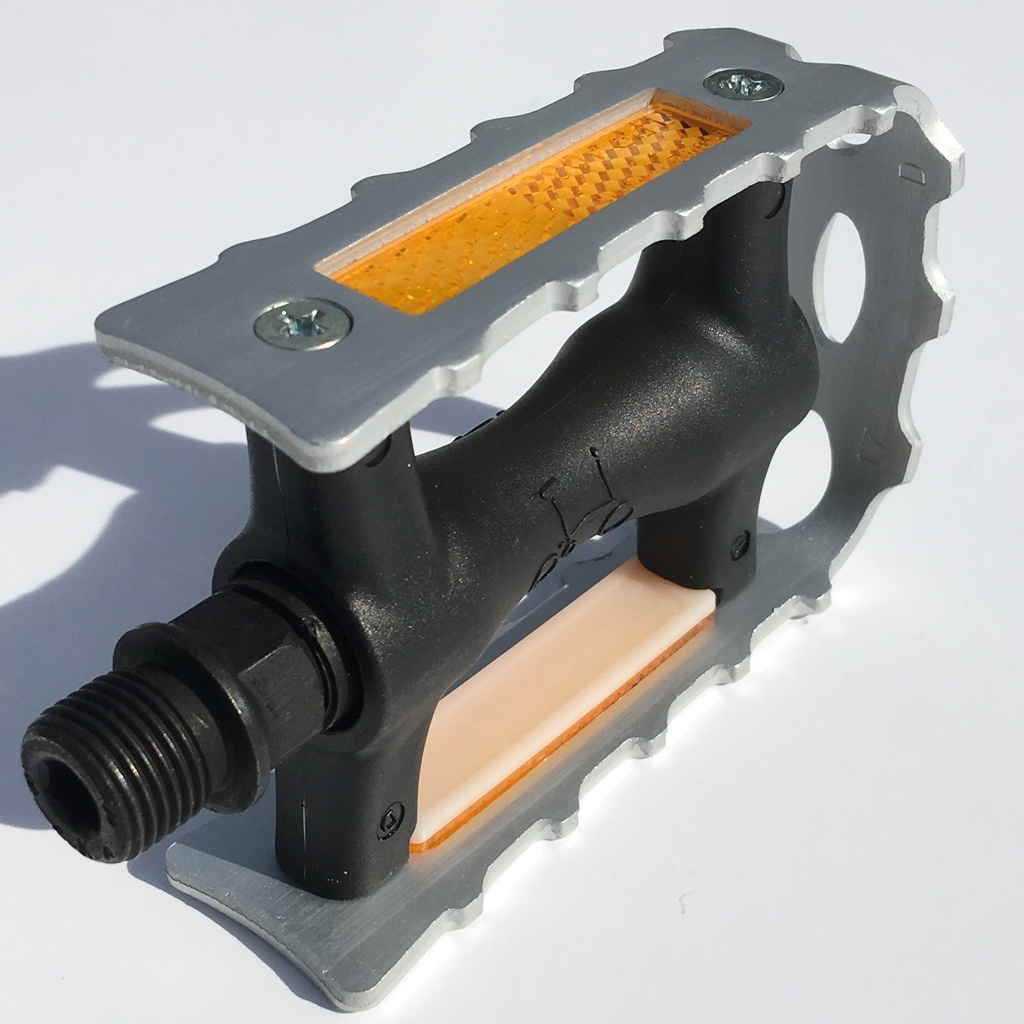

This aluminium caged pedal was introduced by Brompton in 2009 to replace the older plastic Right Hand pedal which had a habit of occasionally falling apart
The spindle even has some little detailing - a picture of an unfolded Brompton on one side and a folded Brompton on the other
Pedal thread |
|
Important Note: The thread on this right hand pedal means that you do it up in the normal way - turn clockwise (or to the right if you don't wear a watch). This means that over time (as you pedal) the thread could become tighter and tighter - which may make it difficult to remove (that's why you should grease the pedal thread when installing it) |
Tools required: |
|
Either: 15mm thin spanner (preferably a pedal wrench / spanner to give good leverage as pedals can become screwed on pretty tight after years of hard pushing) for removal or: 6mm Allen key / hex wrench (accessed through the hole in the pedal crank) - apply some grease to the thread to make future removal easier Grease |
Installation method: |
|
Hand tighten the pedal first before using a tool to fully tighten to make sure it is not cross threaded The thread does up in the normal clockwise direction on this pedal if you are using a spanner, but if you are on the reverse side using an Allen key, this will be reversed The pedal should be tightened to 30Nm |
Looking for even more info? |
|
We made a short video on removal and installation of the Brompton non-folding pedal here: Weight (for single pedal) 124g Brompton 2020 Q part code: Q100029 |
