Brompton 3 speed hub gear cable - H-type - 2017 onwards
Not sure of your handlebar type? Check out our Brompton handlebar type guide
Brompton 2017 onwards hub gear cable for Sturmey Archer, Sachs, SRAM 3 speed rear wheel (also for Sachs / Sturmey Archer 6 speed system when used in conjunction with the Brompton 2 speed derailleur) - for use with the integrated gear shifter
On the 2017 model (introduced late 2016) Brompton introduced a new integrated brake lever and gear shifter - this is the cable for those gear shifters.
Picture coming very soon!

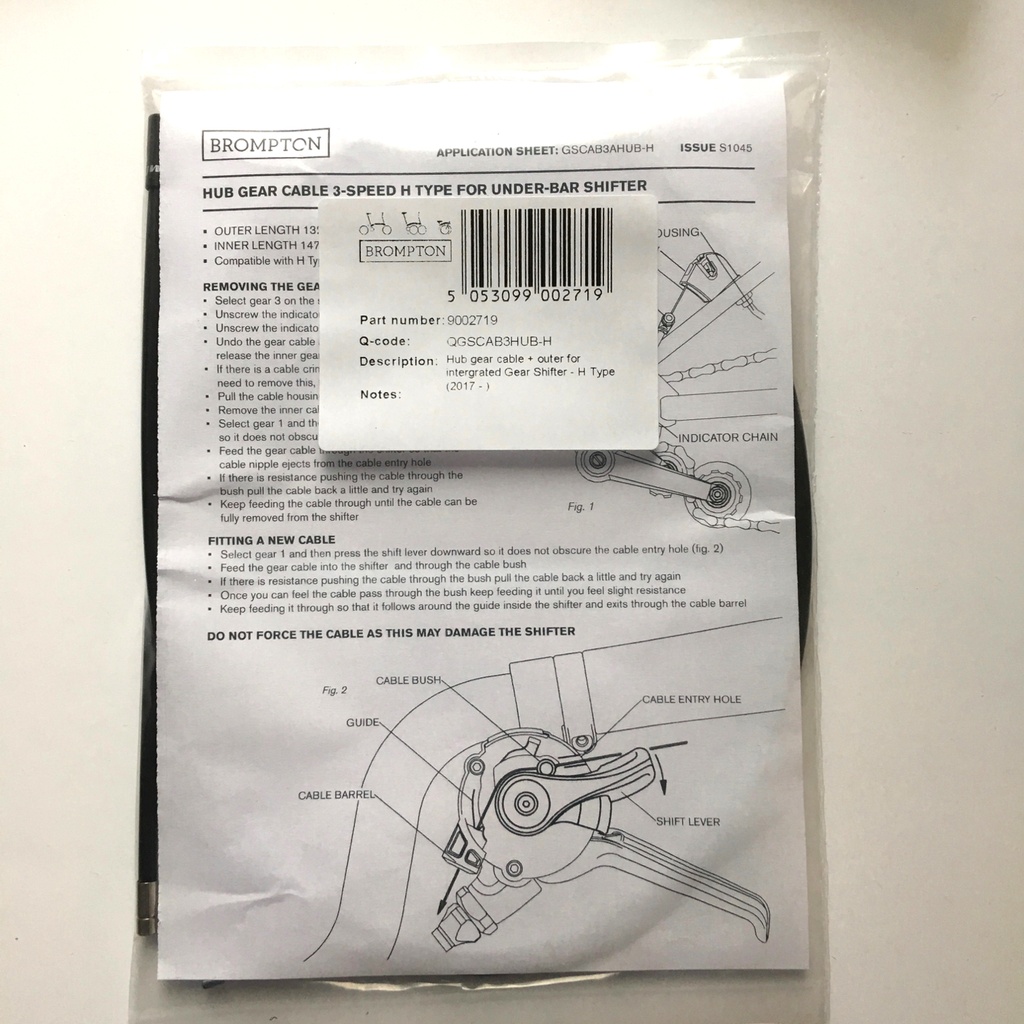

What's in the pack? |
Comprises:
- Cable inner - length 1479mm
- Cable outer - length 1320mm
Cable marked as: HUB-3-H
Colour: Black
Installation: |
Tools required:
- 8mm spanner to remove the existing cable inner from the cable anchor and to re-attatch
- Cable cutter / pliers to remove the end cap from existing cable if one is installed
One end of the cable outer has a silver end and one has a black end
The silver end goes into the shifter / trigger
The black end goes into the cable pulley
We made this video on how to install this Brompton hub gear cable
Brompton Q part code: Q100630
Brompton part number: 9002719
