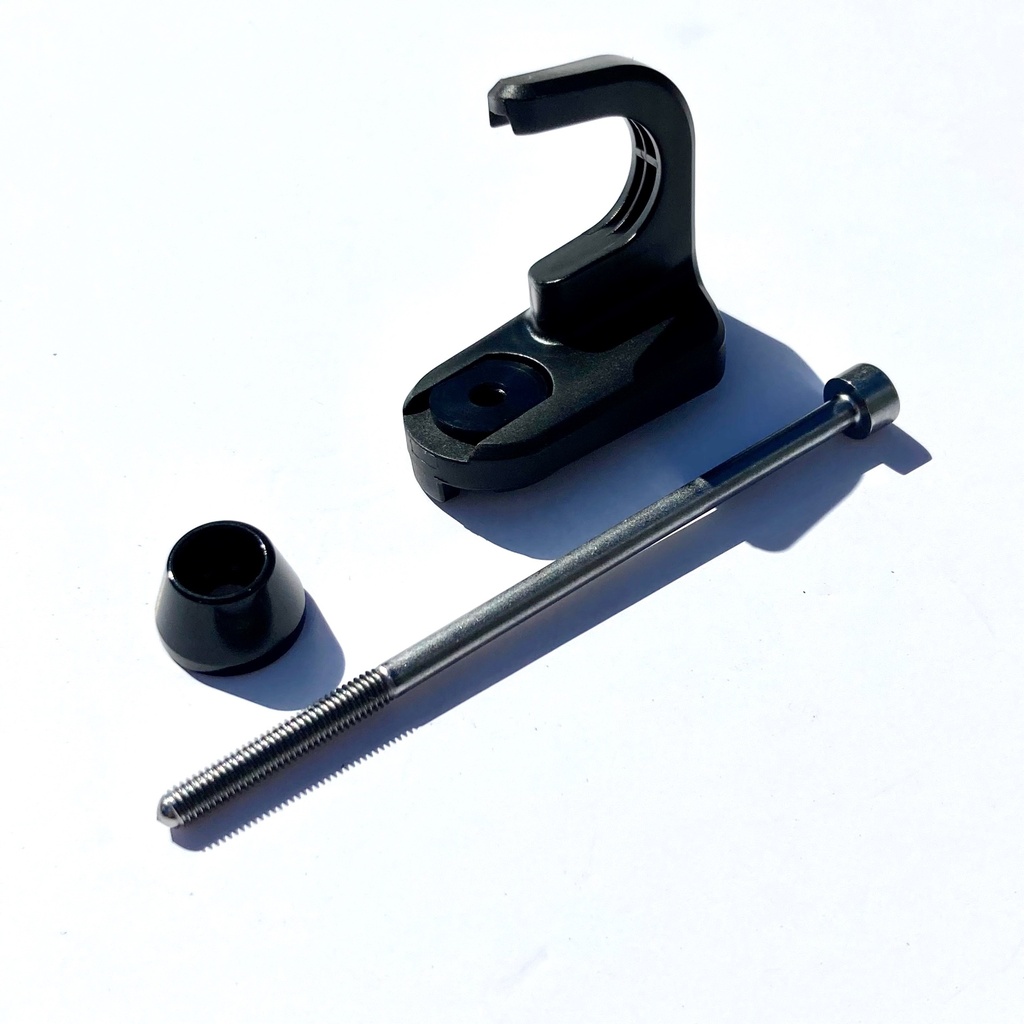

Brompton front axle and hook for T Line
This is a replacement hook with integrated axle nut and axle for the Brompton T Line
This is not compatible with the Brompton A, C or P Line bicycles
|
The pack consists of:
Complete with fitting diagram |
Tools required for removal:
- 4mm Allen key / hex wrench
To remove:
Unscrew the skewer using the 4mm Allen key, and move the hook (with integrated axle nut)
Tools required for installation:
- 4mm Allen key / hex wrench
- Torque wrench
The insert:
Insert the skewer through the skewer cone and through the front wheel, align with the hook
Make sure that the raised tab on the hook is aligned with the hole on the fork
Tighten to 7Nm using a torque wrench and 4mm Allen key
Brompton Q code: Q102679
It is vital that you follow the correct procedure and tighten correctly otherwise the front wheel may not be fixed in correctly!
