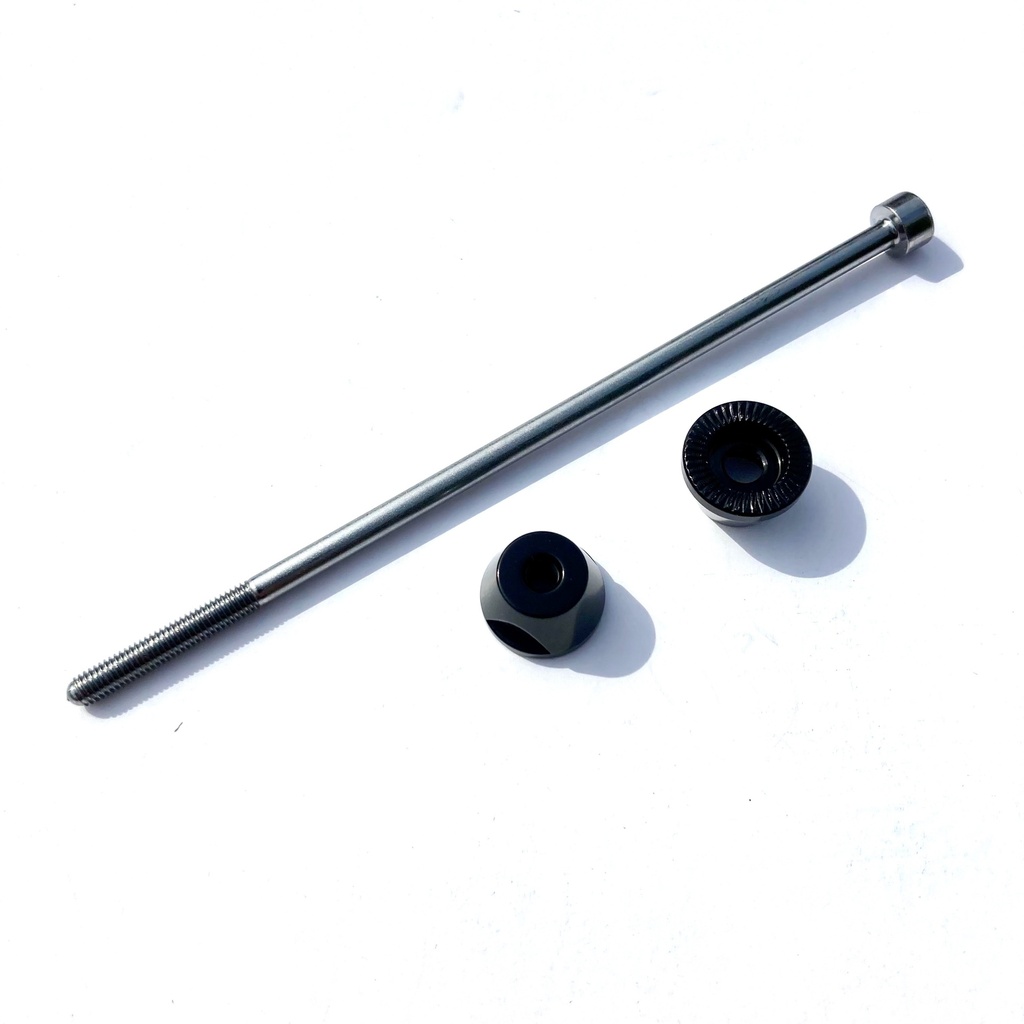

Brompton SL Advance 4SPD Rear Wheel Axle + Fittings

Brompton SL Advance 4SPD Rear Wheel Axle + Fittings for P Line and T Line

Replacement Brompton SL Advance 4SPD Rear Wheel Axle + Fittings for P Line / T Line folding bike

Tools required for removal:

• 5mm Allen key

Place the bike in the stand. fold the rear end and remove the tension from the chain by disengaging the sprocket from the chain.
Use the 5mm Allen key to loosen the skewer, avoid the skewer nut from turning. remove the skewer.
deflate the tyre and let it pass through the brake calliper

Tools required for fitting:

• 5mm Allen key
• Torque wrench

Fit the rear wheel, ensure it is the correct orientation
Seat the chain on the cassette
Insert the skewer and fit the skewer bolt
Tighten to 7NM using a torque wrench
re-engage the chain tension

Introduced by Brompton in 2022
