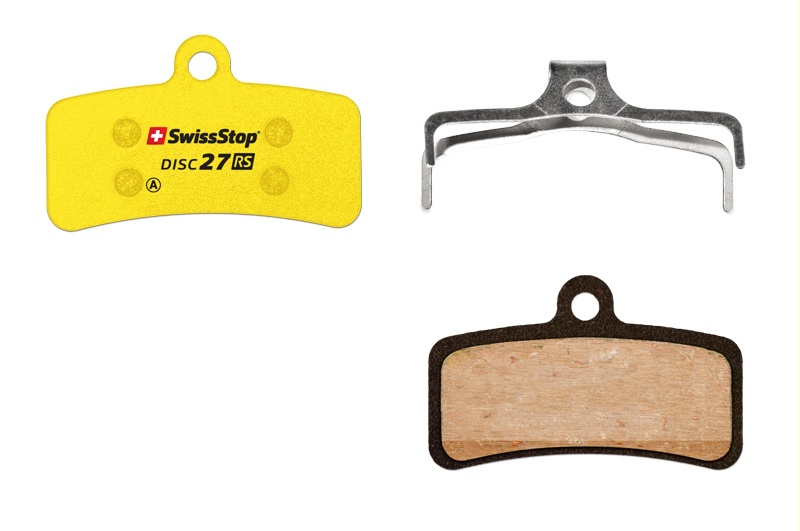

SwissStop Disc 27 RS - Shimano XTR /XT / SLX / ZEE
A direct replacement for the following Shimano brake pads:
- N04C
- D02S
- H03A
- H03C
SwissStop RS pads are race ready and silent - in fact there's a lot to say about them!
QUIET, POWERFUL BRAKING
Disc RS delivers powerful braking and precisely balances the performance characteristics important to racers and everyday riders alike:
- consistently quiet operation
- smooth feel in the brake lever
- predictable and progressive brake power
- very high durability
QUIET WET AND DRY
The RS disc brake compound provides extremely quiet operation in all environments. In wet, dry, snow and icy conditions the compound is noiseless.
ORGANIC COMPOUND
Smooth modulation and rotor friendly.
THIN BACKPLATE DESIGN
At 1.6mm thick the steel backplate saves weight over standard designs, yet provides the preferred thermal characteristics, strength and stability of steel.
Reduced thickness backplate is offset with additional friction material, providing longer pad service life.
BALANCED PERFORMANCE
Disc RS offers a highly balanced combination of brake performance, durability and incredibly low noise in all conditions. This finely tuned compound provides an ideal riding experience which is not found in other disc brake pads.
These 27 RS pads fit the following Shimano Brake Callipers:
- XTR BR-M9120
- XT BR-M8120,BR-M8020
- SLX BR-M7120
- DEORE BR-M6120,BR-MT420
- SAINT BR-M820,BR-M810
- ZEE BR-M640
- BR-MT520
These pads also fit the following TRP brake callipers:
- Quadiem
- Quadiem SL
- Slate T4
These pads also fit the following Tektro brake callipers:
- HD-M750
- HD-M745
- HD-M735
- HD-E725
Performance Characteristics (out of 10 - 10 is best 1 is worst)
- Initial bite: 10
- Modulation: 8
- Longevity: 8
- Heat Tolerance: 8
- Noise when dry: 10
- Noise when wet: 10
Bedding in
Note: These pads should be "conditioned" after installation and before riding - instructions are in the pack
Step 1. On a gradual downhill slope, drag each brake for 20-30 seconds, alternating between front and rear. Repeat 2-3 times.
Step 2. On a steeper slope, engage and drag the brakes for 10-15 seconds then increase lever pressure until the bike slows almost to a complete stop. Repeat 2-3 times.
Pro Tip: The front pads will have been heated more than the rear. To achieve optimal performance, exchange the front and rear pads then repeat Step 2.
CAUTION before replacing or exchanging brake pads it is essential to let all parts cool.
