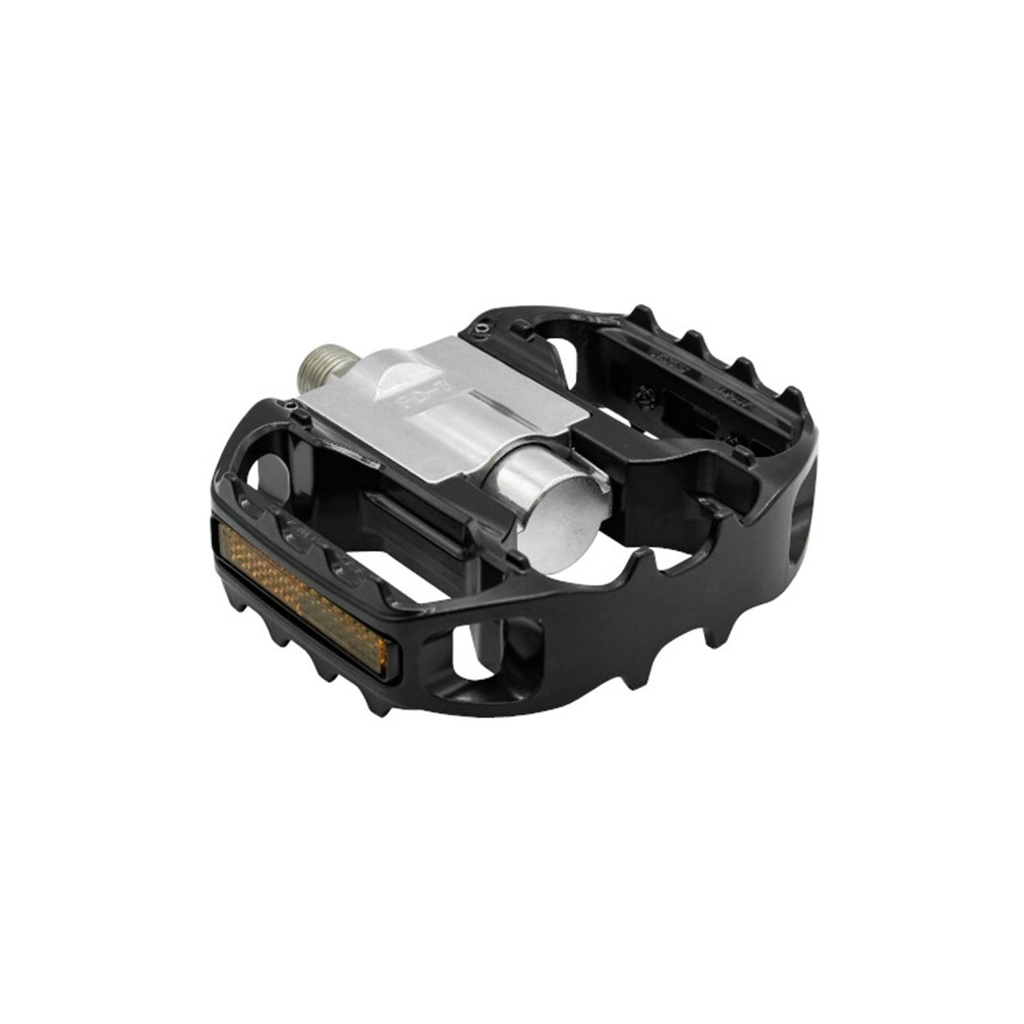

MKS FD-7 Wide Folding Pedal (pair) - Black
The FD-7 wide uses the same folding mechanism as the MKS FD-7, but has a wider platform, of 109.7mm. Iy is a strong, alloy pedal that uses a single action for quick and easy folding, perfect for folding bikes like the Brompton.
These pedals have integrated reflectors and a semi-aggressive tooth pattern.
To fold the pedals:
1. Push the button in the center of petal body
2. Pull or push the pedal body in the direction of your choosing
To Unfold the pedals:
1. Push the cage down until you hear a satisfying click
Key features:
- Size: W92 (folded54) x L110mm
- Bearings: Cup and cone
- Double sided
- Weight: 562g
- Material: Alloy/Black-Painted
To install the pedals:
- They are marked L and R for Left and Right hand side
- Use a 8mm Hex wrench to install
- Grease the threads then align and screw in one or two turns before using the Hex wrench
To fold:
- Lift or press down on the cage while pushing the button
- Return to horizontal to ride!
