Intense upper link hardware kit

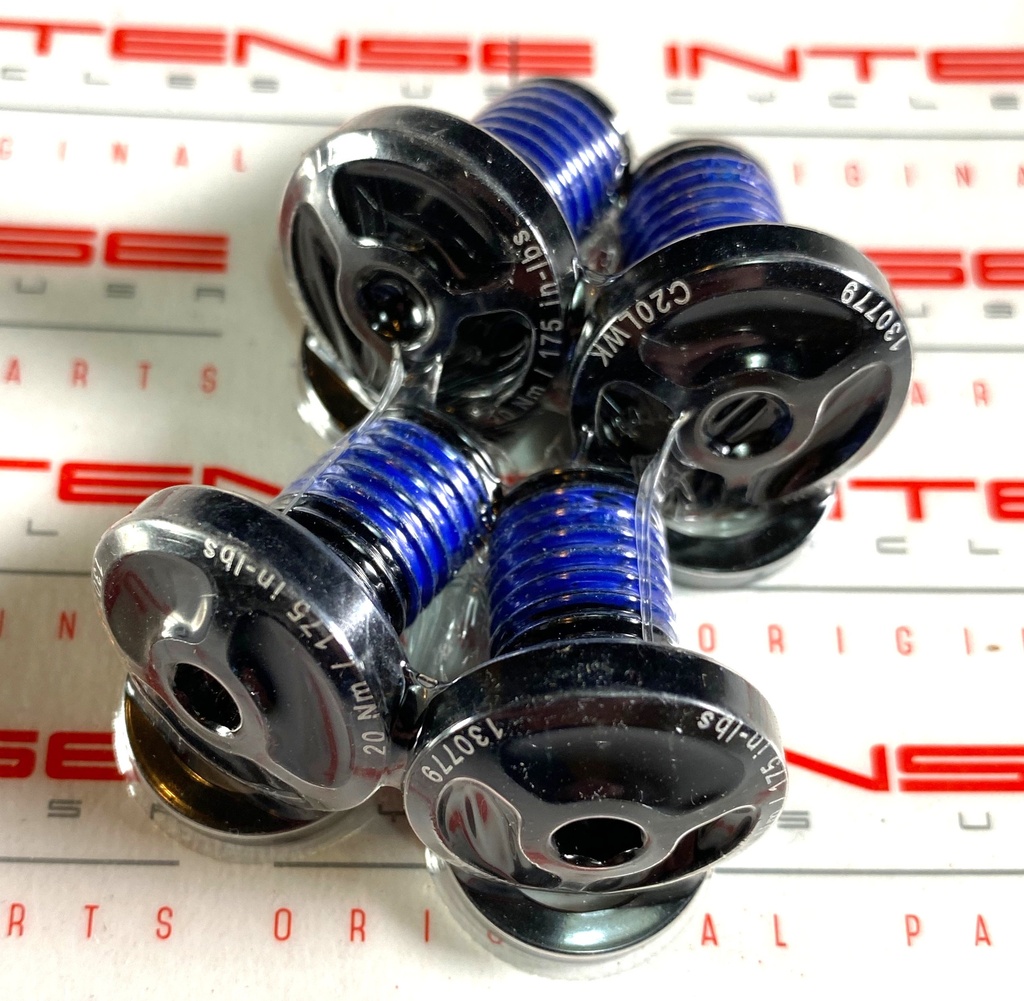

This is the upper link hardware kit for all Alloy Intense Bicycles from 2008 - 2014. The kit contains th following parts:
- Coarse Shoulder Bolt x 4 (Part number 130779)
- Shoulder Bolt Washer x 4 (Part number 130784)
There are a few shoulder bolts used on the Intense range of bikes - so please check carefully before installing. If in doubt, just give us a call.
This black / coarse shoulder bolt is for the following Intense frames - these frames use four course thread shoulder bolts in total - securing the top link to the main frame and the seat stay:
Intense Tracer 275 Alloy (2014 and earlier - identifiable with the heavy welding down the centre of the top tube)
Intense Spider (3rd generation)
Intense Spider 29 (3rd generation)
Intense Tracer 29
Intense Tracer 2
Intense Uzzi VP
Intense Slopestyle
Intense Slopestyle 2
Intense 951 and 951 FRO (Note: 951 EVO uses the course thread wide flange bolt - not this one)
Intense Spider 2
Intense Tazer VP
Intense Tracer VP
Intense Tracer 2
Intense Tracer 275 2013-2014
Intense Spider VPX
Intense Spider FRO
Intense 5.5
Intense 6.6
Intense Uzzi VPX
Intense Socom
Intense M6
The Old part code for the coarse bolt was: 130040
Colour: Black
Note - the packaging is labelled up as 2013 - 2015
