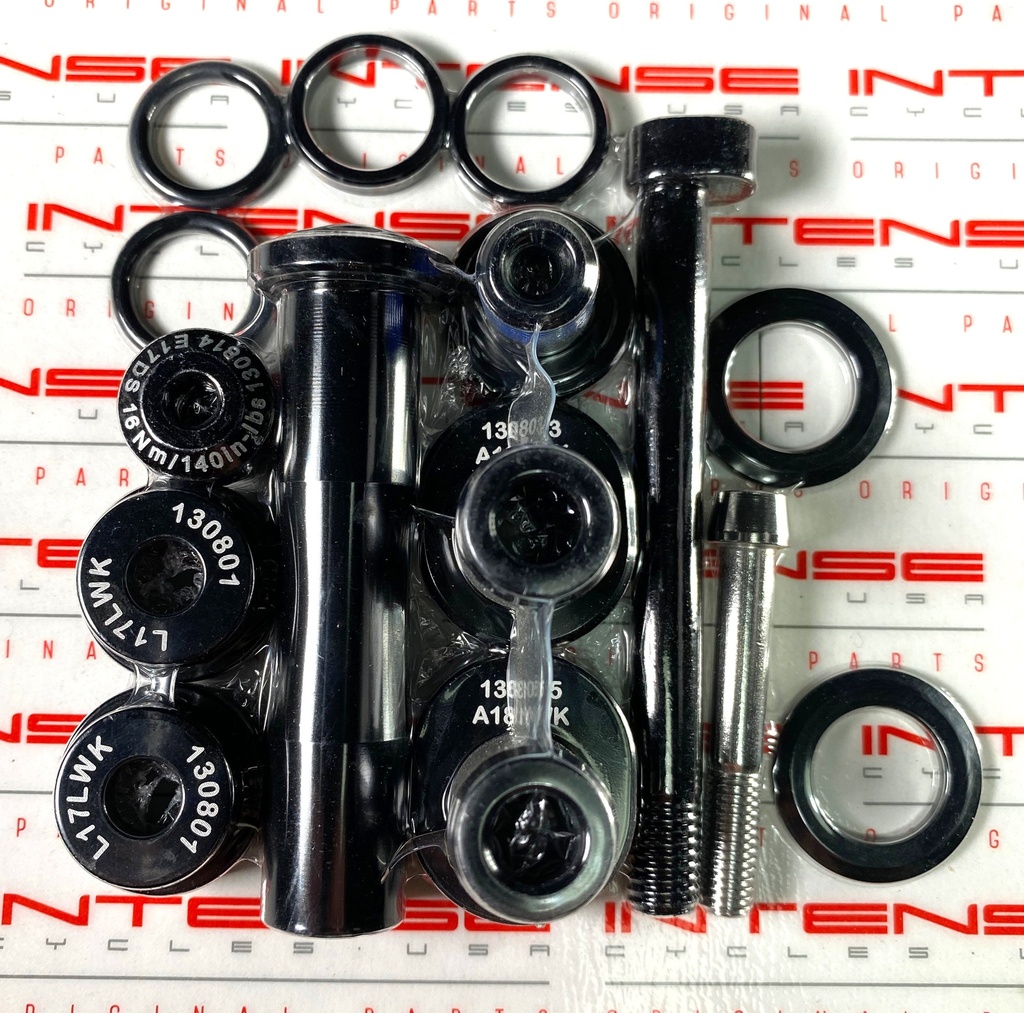

Intense Tracer upper link hardware kit
This is a replacement upper link hardware kit for the Intense Tracer, it is compatible with the following models:
Intense Tracer - 2017 to 2020
The kit includes the following parts:
| Qty | Code | Description | Note |
| 2 | 130765 | Bearing Cap 24mm OD S275C Blk | |
| 1 | 130780 | Axle Upper Pivot Carbon Blk TW | |
| 1 | 130785 | Fine-Thread Shoulder Bolt T275C/C275/S29C Blk TW | |
| 2 | 130860 | Pivot Axle Spacer Tracer | |
| 2 | 130801 | Spacer 2017 Tracer 275C Shock Reducer | |
| 1 | 130803 | Reducer D-Lock 2017 Tracer 275C | |
| 1 | 130805 | Reducer Drive Side 2017 Tracer 275C | |
| 1 | 130813 | Bolt D-Lock 2017 Tracer 275 | |
| 1 | 130814 | Nut Drive Side SS 2017 Tracer 275 | |
| 2 | 140044 | Upper link O-Rink 13.8mm internal diameter x 2.4mm | |
| 1 | 410053 | Front shock bolt, socket head, M6 x 40 |
This is Intense part number: IT340224
Please see attached Tracer technical diagram for the location of these parts
