Intense upper link hardware kit (ACV)
This is the upper link hardware kit for the Intense ACV (years 2017 - 2019).

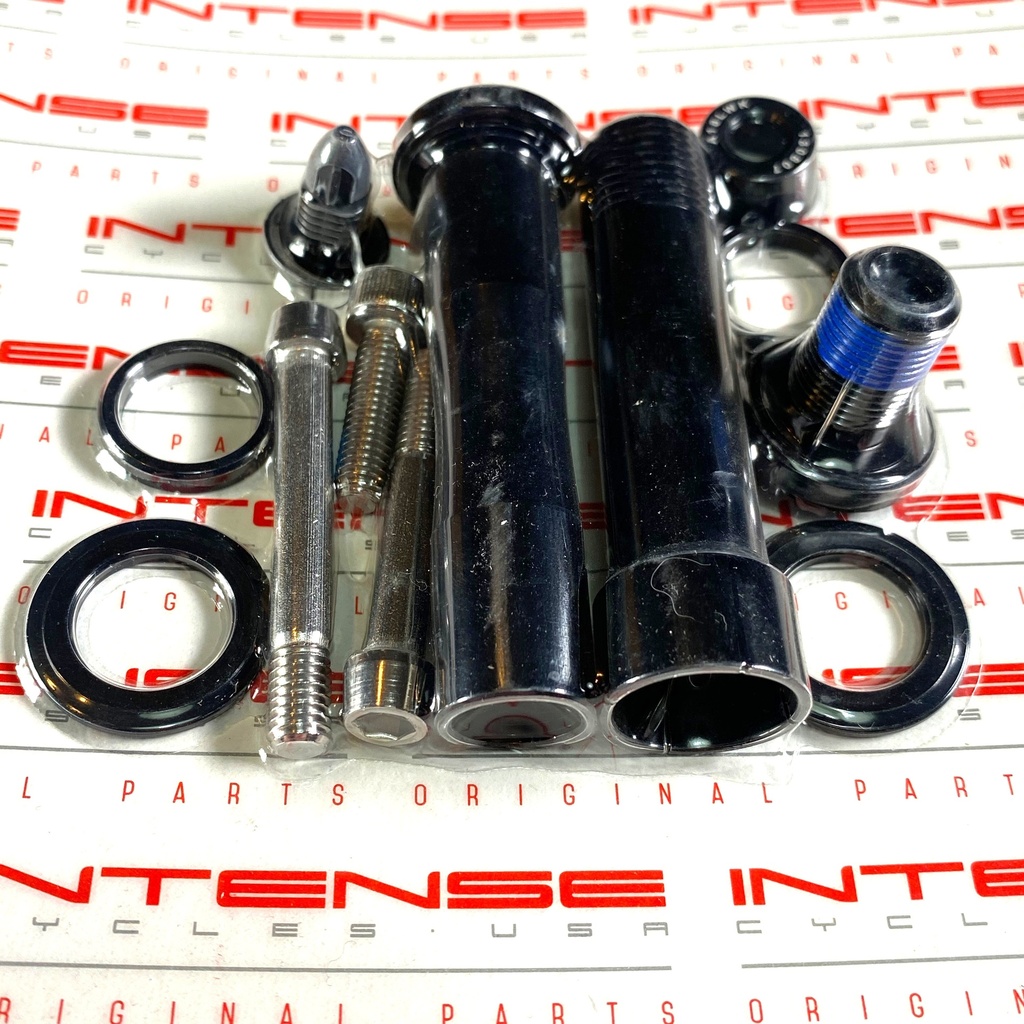

The kit contains the following parts:
Qty |
Part No |
Description |
Note |
| 2 | 130765 | Bearing cap 24mm OD S275C | |
| 2 | 130780 | Upper Pivot Axle for Carbon bicycles | |
| 1 | 130785 | Should Bolt Fine-Thread Black | |
| 2 | 130789 | Upper Axle Spacer Carbon Bicycles | |
| 1 | 130791 | Main pivot Bolt 1.5t Expander Black | |
| 1 | 130807 | Cone Adjuster Spacer 8.3mm (short) Black | |
| 1 | 140038 | Trim Plug 15mm | |
| 1 | 410009 | Bolt SHCS M6x22 | |
| 1 | 410053 | Bolt SHCS M6x40SS for shock Mount | |
| 1 | 410054 | Bolt SHCS M6x55 SS for shock mount |
Although this kit states it is for an Intense ACV a number of these parts are for other Intense bicycles too
A technical diagram for the Intense ACV is available in the download section of this product page
Colour: Black
