Intense lower link kit titanium for ACV, Primer, Spider, Recluse, Uzzi

(0 review)
Intense lower link kit titanium for ACV, Primer, Spider, Recluse, Uzzi (Please check your model from the list below)

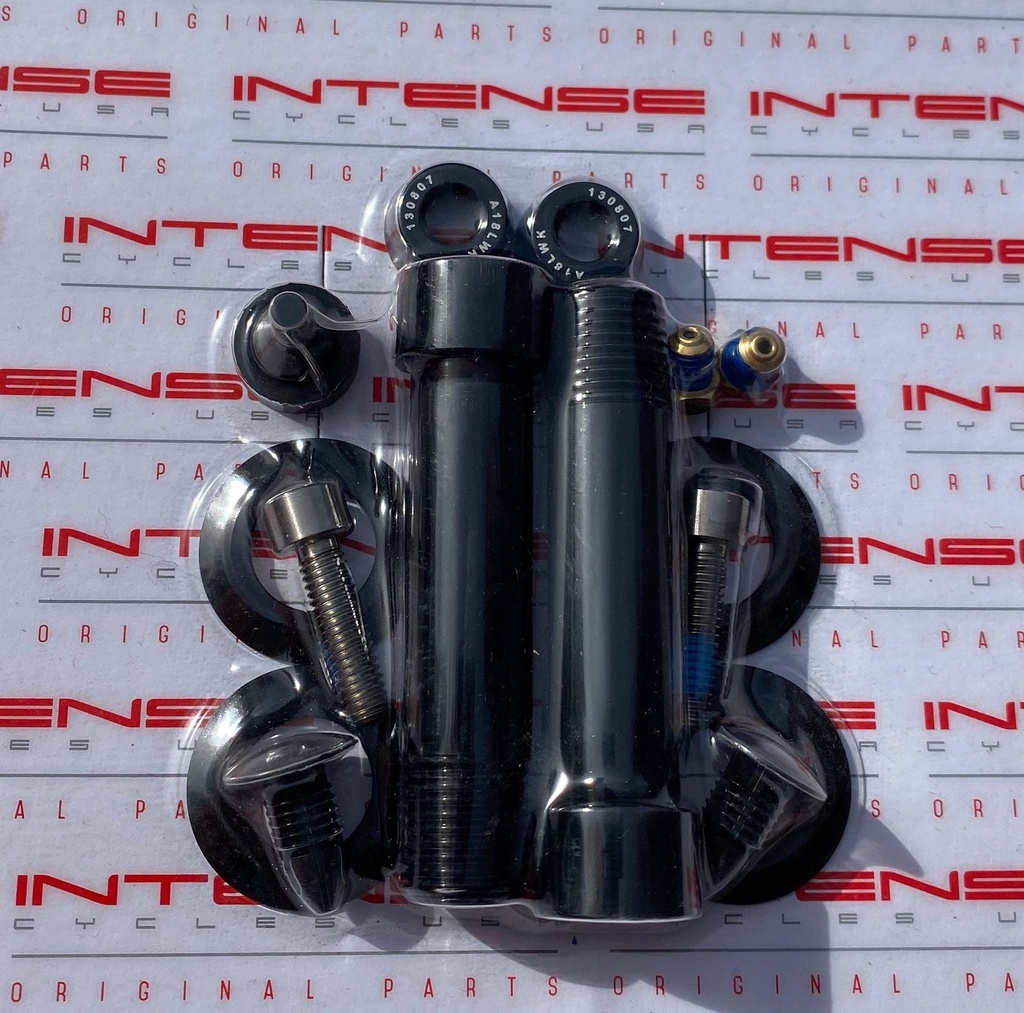

Intense Lower Link Kit - titanium

This is a kit from Intense and contains the following parts:

Item Description Qty Note
130778 Bearing cap 4
130791 Intense Main Pivot 1.5t Expander Black - coarse thread 2
130807 Intense Cone Adjuster Spacer 8.3mm - short 2
140006 Box link plug/bumpstop 1
140038 Box link pivot plug 15mm 2
401011 Zerk fittings M6x1.0x7 2
410032 Intense Cone Adjuster Bolt - M6 - Titanium 2

This kit contains the coarse thread expander bolt (version 3) earlier bikes use a fine thread bolt (and this won't fit the older bikes) - please check the below list for compatibility

Bike model  Years
Intense ACV  2015 - 2016
Intense Primer   2016 - 2018
Intense Recluse  2016 - 2018
Intense Spider  2016 - 2018
Intense Uzzi  2015 - 2016

Intense Kit number: IT310207
