Intense Primer/Recluse/Spider/ACV/Uzzi/ Tracer Lower Link Hardware Kit - 2016-2019
(Please check your model / year from the list below)

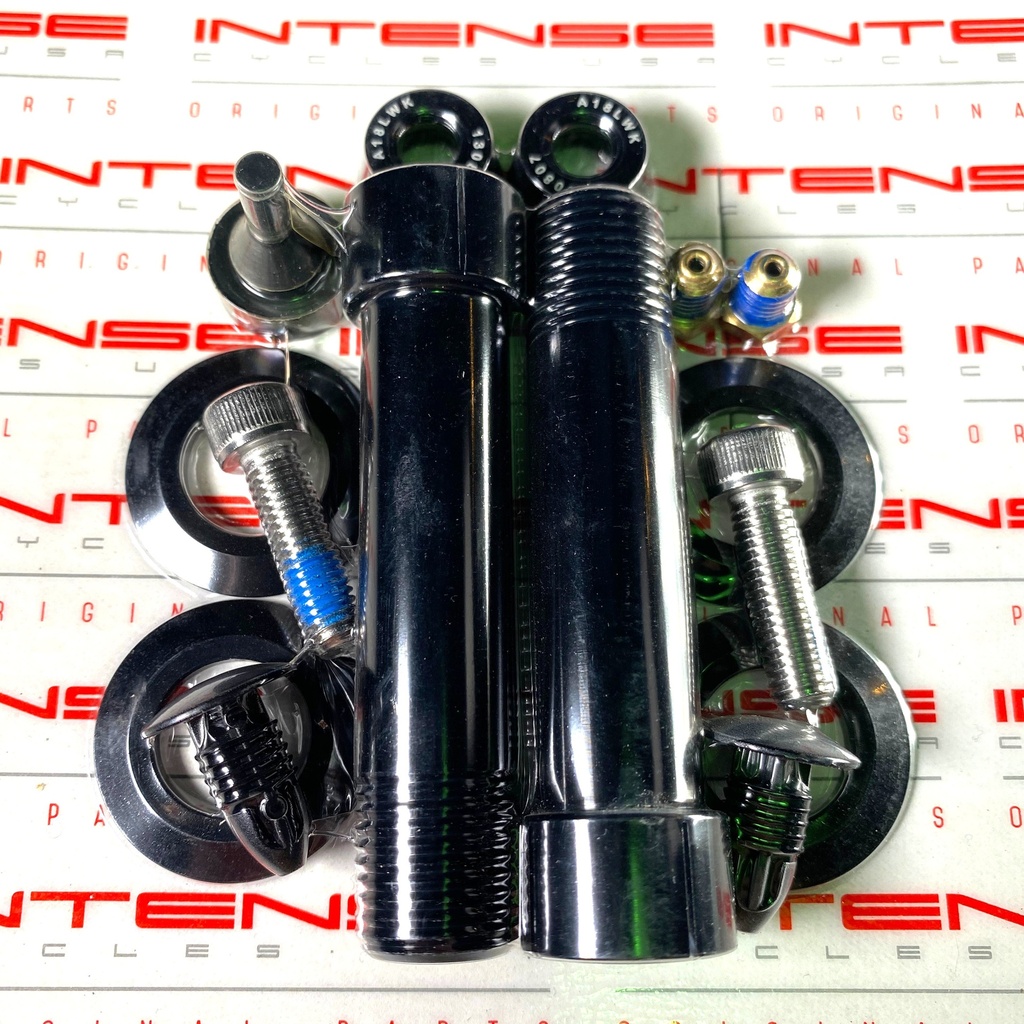

This lower link kit contains the following:
Qty |
Item |
Description |
Note |
| 4 | 130778 | Black bearing cap | |
| 2 | 130791 | Main Pivot Bolt 1.5t Expander Black | Stamped with part no - tighten to 7Nm |
| 2 | 130807 | Cone Adjuster Spacer 8.3mm | Stamped with part no |
| 1 | 140006 | Rubber bumper / bump stop | |
| 2 | 140038 | Trim plug / Box link pivot plug | Stock photo shows 4 - its wrong! |
| 2 | 401011 | Threaded Zerk fitting - M6 x 1.0 x 7 | Also known as 1/4 inch |
| 2 | 410009 | Bolt SHCS M6x22 |
This kit is for use on the lower link of the following bikes
Model |
Model year |
| Intense ACV | 2016-2018 |
| Intense Primer | 2016-2018 |
| Intense Recluse | 2016-2018 |
| Intense Spider | 2016-2018 |
| Intense Uzzi | 2015-. 2018 |
| Intense Uzzi | 2015-2016 |
| Intense Tracer | 2015-2016 |
Intense kit part code: IT340201 aka IT340198
