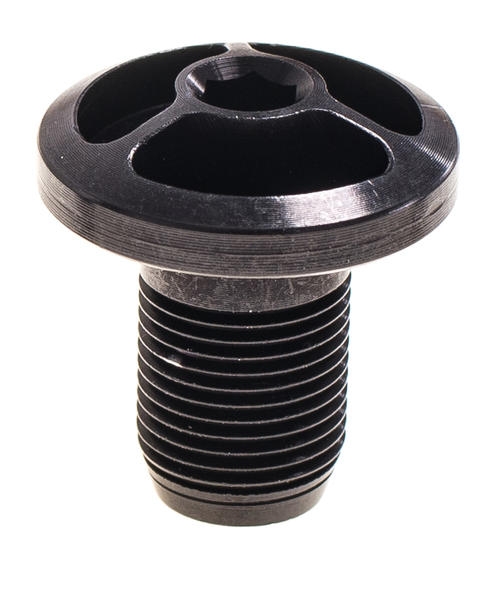

Intense FINE thread shoulder bolt - Black
There are a few types of shoulder bolts used on the Intense range of bikes - so please check carefully before installing. If in doubt, just drop us an email
This black / fine shoulder bolt is for the following Intense frames - these frames use three fine thread shoulder bolts in total - one securing the top link to the main frame and two securing the bottom of the link to the seat stay:
- Intense Tracer 275 Carbon
- Intense Carbine 29 (2014 onwards frames with forged top link. Older Carbine 29 frames with CNC'd top link use two coarse thread shoulder bolts at the lower end of the top link).
- Primer 29 (2016+)
- Spider 29C (2014+ frames with forged top link. Older Spider 29C frames with CNC'd top link use two coarse thread shoulder bolts at the lower end of the top link).
- Intense M16 Alloy & Carbon - introduced in 2016
- Intense Spider 275
- Intense Tracer 275 Alloy (2015+)
- Intense Tracer T275 Carbon (1st generation)
- Intense Tracer 2nd Generation Carbon - Introduced in 2017 and called the 2018 model
- Intense Uzzi 275 - introduced 2016
If you are looking for a complete kit or multiple shoulder bolts, the kit IT340375 - described as Intense Top Link Hardware Kit for Tracer / Carbine and Spider contains 3 of these
This black / fine shoulder bolt is also for the following Intense frames - these frames use one fine thread shoulder bolts in total - one securing the top link to the main frame and two course thread bolts (not these ones) securing the bottom of the link to the seat stay:
- Intense Carbine SL
- Intense Carbine 275
New part number: 130785
Old part number: 130129
