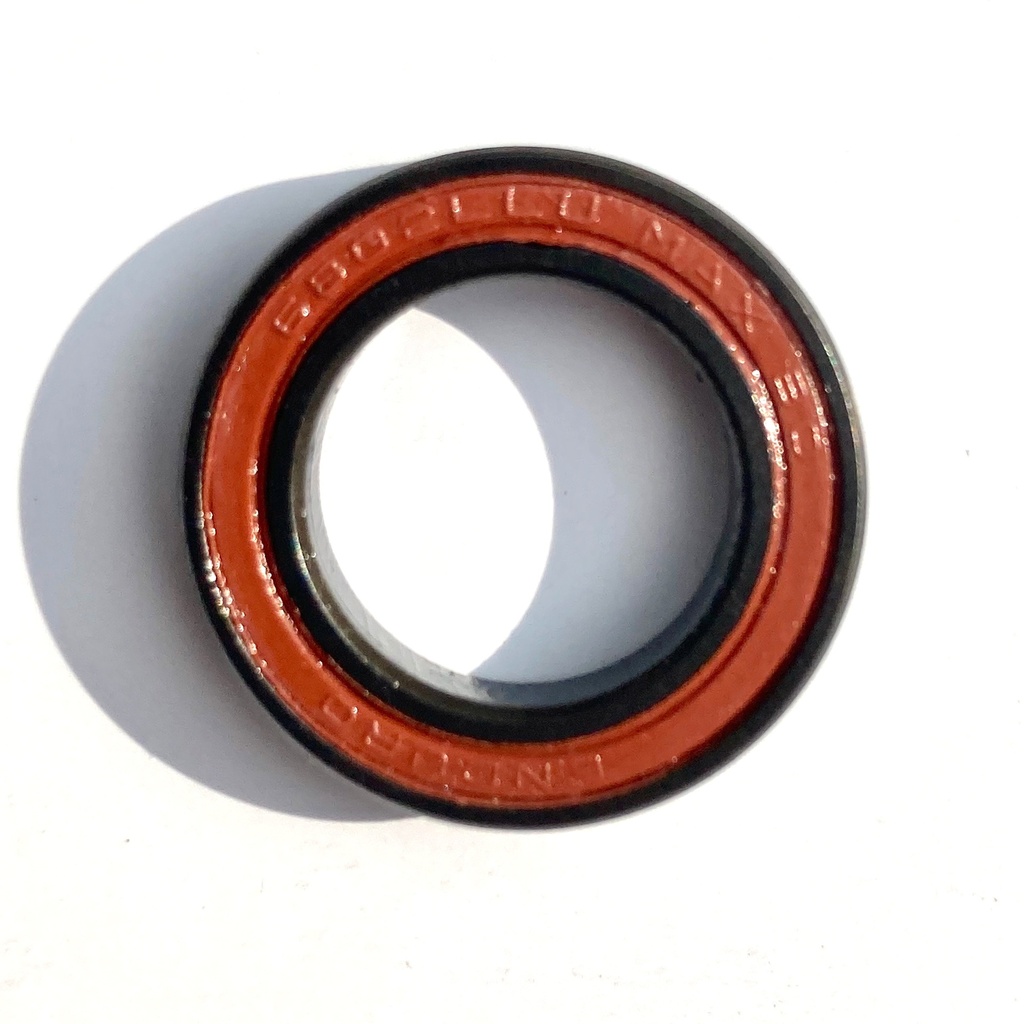

ENDURO Bearing 6802 LLU MAX BO - ABEC 3 MAX
These Enduro bearings are designed to carry a higher load, as the have 40% more balls than standard ABEC 3 or 5 bearings, they are designed without retainers.
These are perfect for frame pivots.
They are also packed with CRC Marine Grease, which will not wash out or break down when wet ensuring your frame bearings last even longer.
- Bearing Code: 6802
- Internal diameter: 15mm
- External diameter: 24mm
- Bearing width: 5mm
- Dimensions: 15mm x 24mm x 5mm
- Grade: 10
- Seals: LLU
- Grease: CRC Marine
- Application: Frame Pivots
- Weight: 6.83g
The outer casing is black oxide (rather than silver) this helps to prevent rusting so increases bearing life
Where we know these are used - Orbea:
This is part of the top link assembly on the full suspension 2017/2018 Orbea Occam
Compatible with the following bikes:
Orbea Occam TR 2018 aluminium and carbon
Orbea Occam AM 2018 aluminium and carbon
These bearings are part number 5 in the Occam exploded view diagram and hidden behind the Advanced Dynamics 15 NM bolt on the bike (pictured)
Two of these are used in the top link
Orbea Occam TR and AM 2018/2019 carbon
1 of these bearings is used as part of the main pivot - No 9 in the Occam carbon main pivot exploded parts diagram
Orbea Oiz 2017
2 of these bearings are used as part of the main pivot assembly (located just above the bottom bracket)
Orbea Rallon 2018/2019
1 of these bearings is used as part of the main pivot assembly - No 1 on the exploded parts view
2 of these bearings are used in the link assembly - No 9 on the exploded parts view
Orbea Oiz 2019 / 2020
2 of these bearings are used as part of the main pivot assembly, these are number 3 in the exploded diagram
