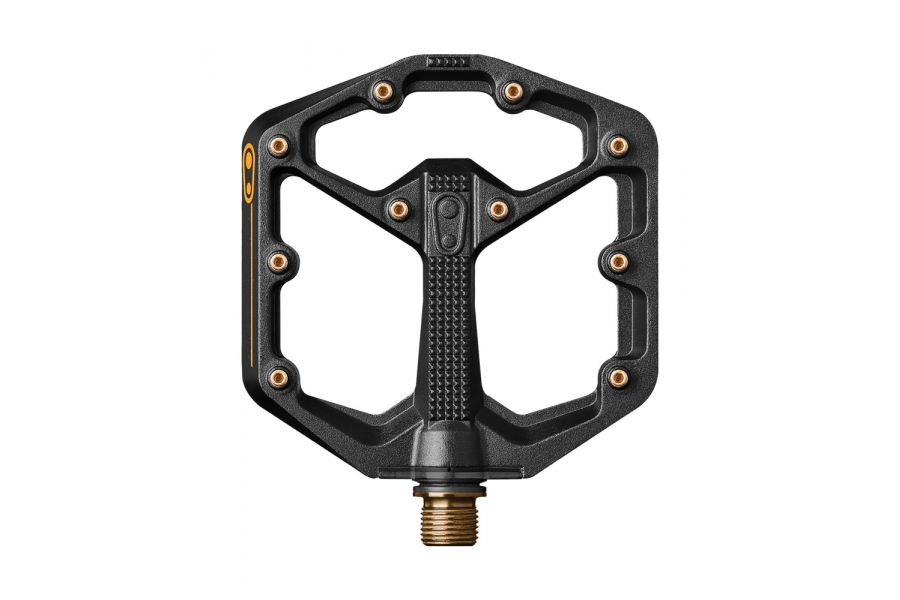

crankbrothers stamp 11 platform mountain bike pedal
The level 11 pedal is the top of the range crankbrothers flat pedal with a slimline, thin, concave profile, adjustable pins for grip and a titanium axle.
The outsole profiles of the top mountain bike show brands were analysed and the data used to create two distinct surface areas to optimise shoe/pedal contact across all of these different models. The small is designed for EU shoe sizes from 37-43, and 43-49 for large. Once the optimal sizes had been established the features required for the ideal flat pedal were also incorporated.
crankbrothers stamp 11 features
- Concave pedal platform so that your shoe feels like it sits into the pedal and feels connected.
- 13mm external and 11mm internal thin-ness.
- grease port - so you can re-grease without removing the pedal
- Titanium axle
- 20 adjustable pins per pedal (10 on each side).
- 8mm in the centre of the pedal and 10mm on the outer edges.
- Internals run on igus LL-glide bearing which has been exclusively formulated for crankbrothers. It performs in even the most adverse conditions out on the trails.
- Small: 100mm x 100mm pedal body footprint
- Large: 114mm x 111mm pedal body footprint
- Available in black or black
- Weight: 299g (Small), 325g (Large)
- Spindle: Titanium
- Body: Forged 6061-T6
- 5 year warranty
crankbrothers stamp pedals sizing
- stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
- stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
