Brompton mudguard stay anchor plate
Brompton mudguard stay anchor plate used on each of the front and rear mudguards
The Brompton mudguard anchor plate is part of the complete front and rear mudguard (bikes with no rack) assembly - it holds the mudguard to the mudguard stay (which in turn connects to the wheel mount)
On the front mudguard it connects the only stay to the mudguard
On the rear mudguard (for bikes with no rack) the anchor plate connects the front stay to the mudguard (the two rear stays are connected to the roller assembly)
What's included in the set?

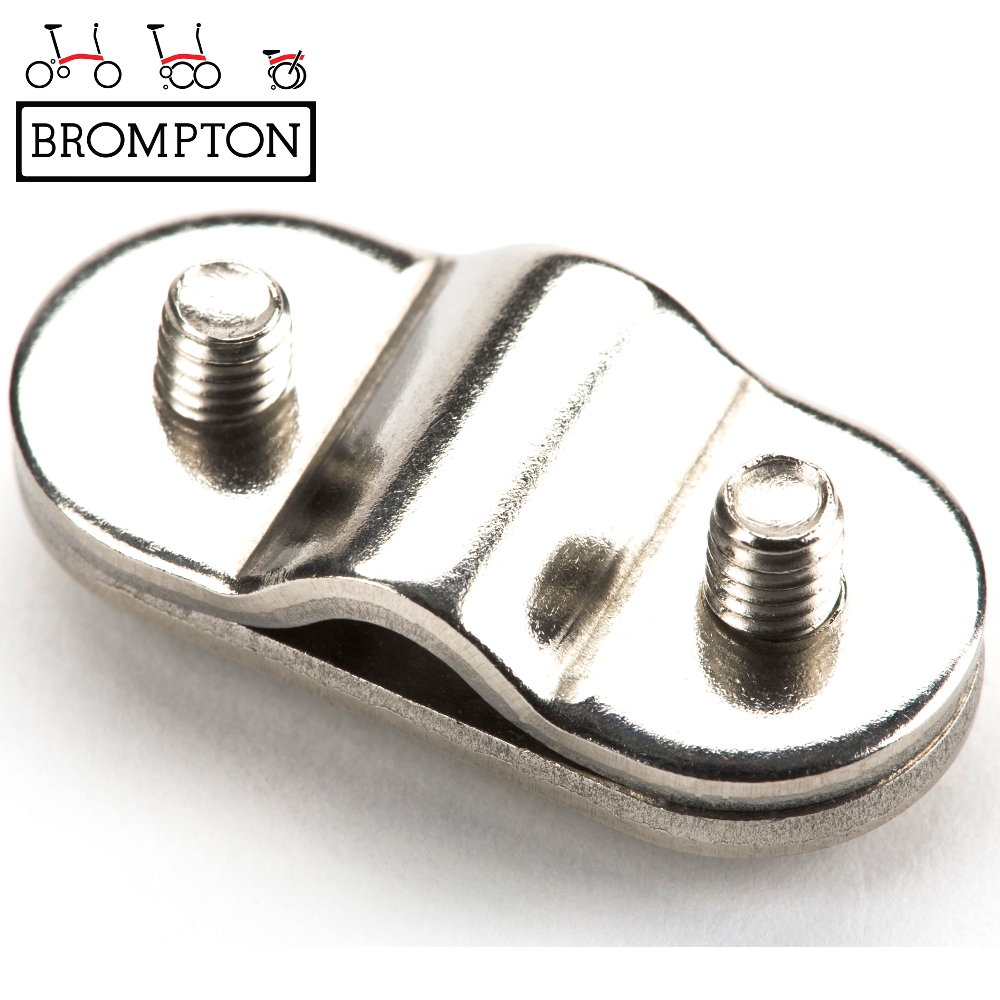

The Brompton mudguard stay anchor plate set contains the following:
- Inner mudguard plate (curved to fit around mudguard stay)
- Outer mudguard plate (flat)
- Two fixing screws - one of the two plates (the inner / under mudguard one) has a thread cut into it, so the screw connects directly to that
Installation of the anchor plate
Tools required:
- 2.5mm Allen key / hex wrench
We made this short video (see below) to show how the front mudguard flap is installed / fitted - within that you can also see how the mudhuard anchor plate looks and is removed / installed
Brompton Q part code: QMGSTAP
Brompton part number: 9017133
