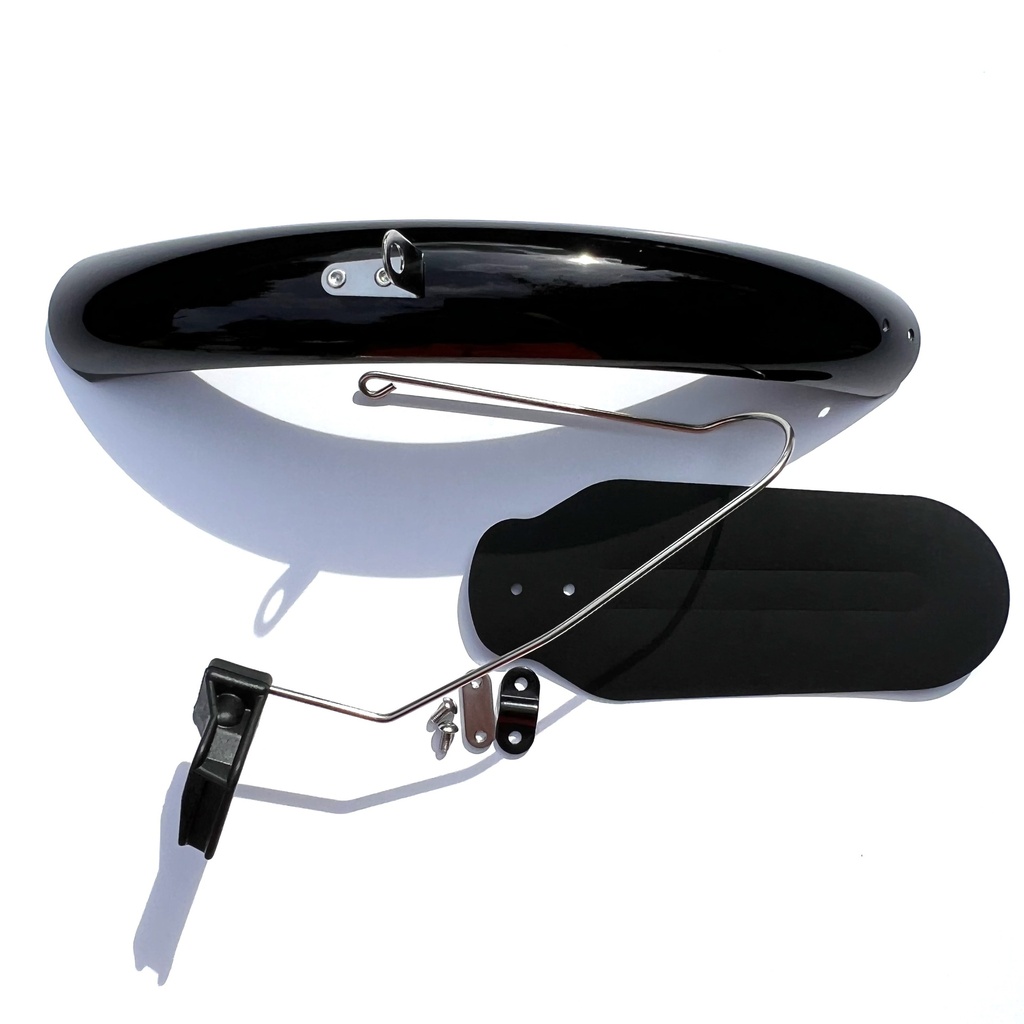

Brompton Advance front mudguard set for P Line
Replacement Brompton Advance front mudguard for the Brompton P Line (including the 2023 CHPT3 V4) folding bike
The pack consists of:
Complete with fitting diagram |
Fitting instructions as follows:
- It is recommended to remove the front wheel
- Remove the front brake caliper, by unscrewing the locking nut behind the fork
- Remove the washer which will be present if you have no front mudguard
- Assemble the blade and stays, tightening the screws to 2 Nm
- insert the brake caliper into the hole on the top of the mudguard, ensure the caliper is centred and the mudguard not twisted
- Complete the stack before reinserting the brake caliper bolt into the fork
- Tighten the locking nut to 2 Nm
Tools required for installation:
- Torque wrench
- 5mm Allen (hex) key
The Brompton advanced front mudguard set was introduced in 2022
** PLEASE NOTE: The Datasheet included by Brompton with this product is actually for the T Line bicycle. Brompton have confirmed that this is incorrect and customers should use Datasheet ds-mgsfhook.pdf which we have attached to this product listing.
Datasheet ds-mgsfhook.pdf is correct for P Line and C Line bicycles.
