Brompton brake pads AND holders - by SwissStop

Brompton brake block/shoe (pair)

These pads will improve braking performance even on older style Brompton brake calipers

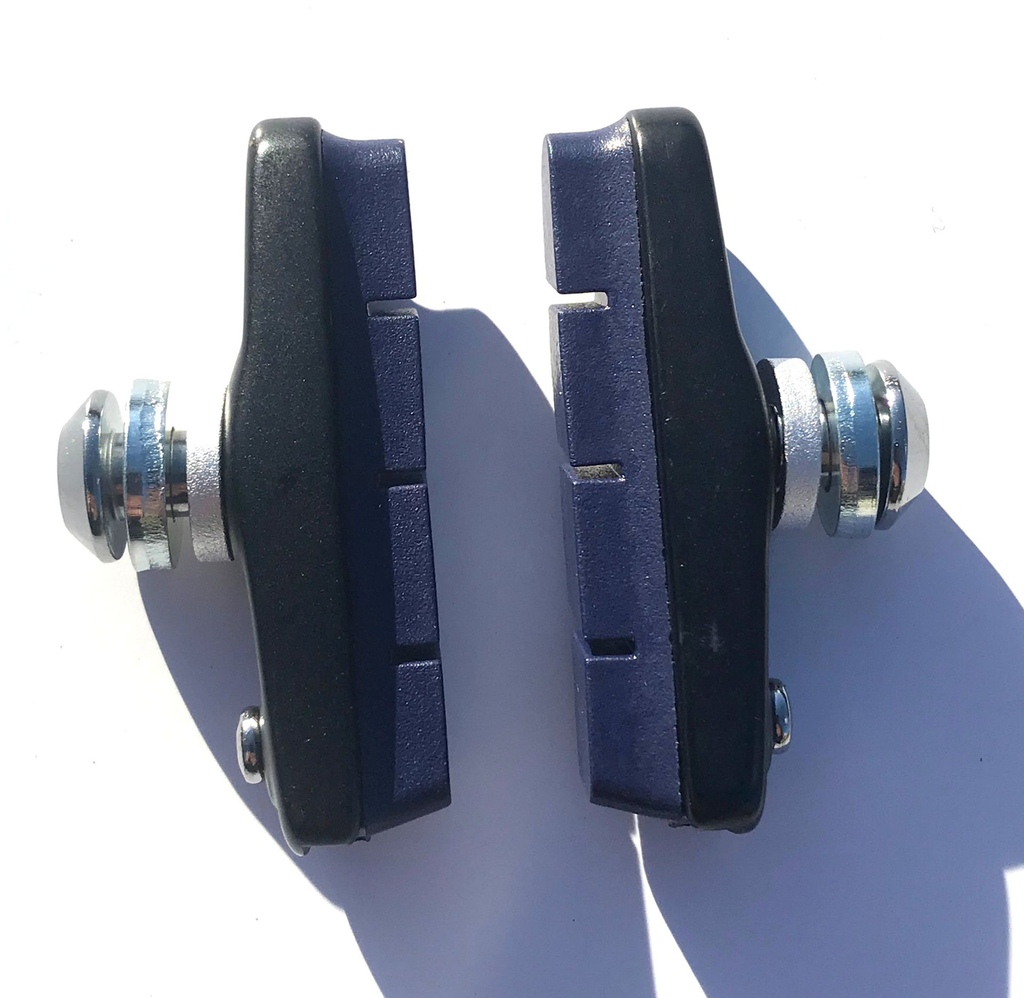

Brompton (with Swissstop BXP brake pad inserts) brake shoes and holders - pair

Suitable for standard and Electric Brompton folding bikes

Swissstop BXP pads use the latest compound for aluminium rim (such as your Brompton)

The non-sticky predictable linear feel provides improved modulation, power and braking in all conditions. We have found that they also cause the least wear to rims - helping to make the wheels (well rims at least) last longer

Alternative 1:

Fibrax brake pads / holders (as previously used by Brompton)

Alternative 2:

SwissStop Flash Pro BXP (the same pads as used on Brompton Electric for extra stopping power - but with SwissStop instead of Brompton holders)

Note: This is a pair of the rubber brake pad insert plus the metal holder / brake shoe - if you already have the Fibrax brake cartridge holder, and are happy with the performance, then you can save yourself some money and just buy the new inserts here

(although these give even better performance!)

Technical note: These pads with holders can be fitted to older style single and dual pivot Brompton brakes and will improve performance.

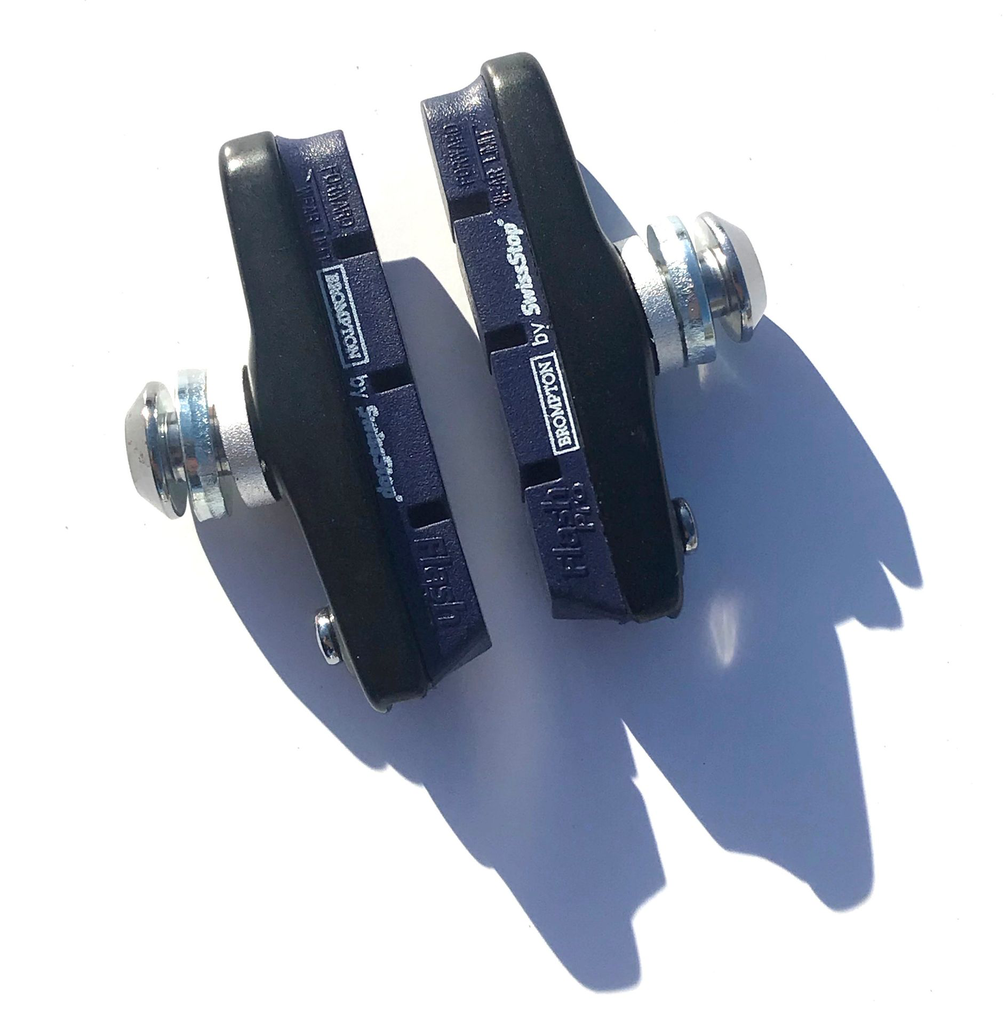

These Brompton brake blocks are marked with arrows to show the direction they should be facing this is as you are sitting on the bike, to enable correct fitting.

There should be a 1.5mm space between the brake pad and the wheel rim

• 5mm Allen Key for pad holder installation (fixing to calipers)

This should be tightened to 6.8Nm

2019 - New pads - these ones are also used on the Brompton Electric. Includes brake inserts which are SwissStop BXP (with a Brompton logo)

2018 (late) A shortage of availability led to the current / temporary? brake pads - with exchangeable brake blocks

2018 - A new one piece brake block with non-exchangeable pads was introduced (alongside the electric Brompton?)

2017-2018 - To match the black edition bikes and the new black brake calipers temporary black holders with exchangeable pads were used

2007-2017 - Fibrax brake pads and holders - with changeable cartridges were used. The holders were a bronze colour

Pre 2007 - chunky brake pads / holders with non-removable pads were used - the braking wasn't so good

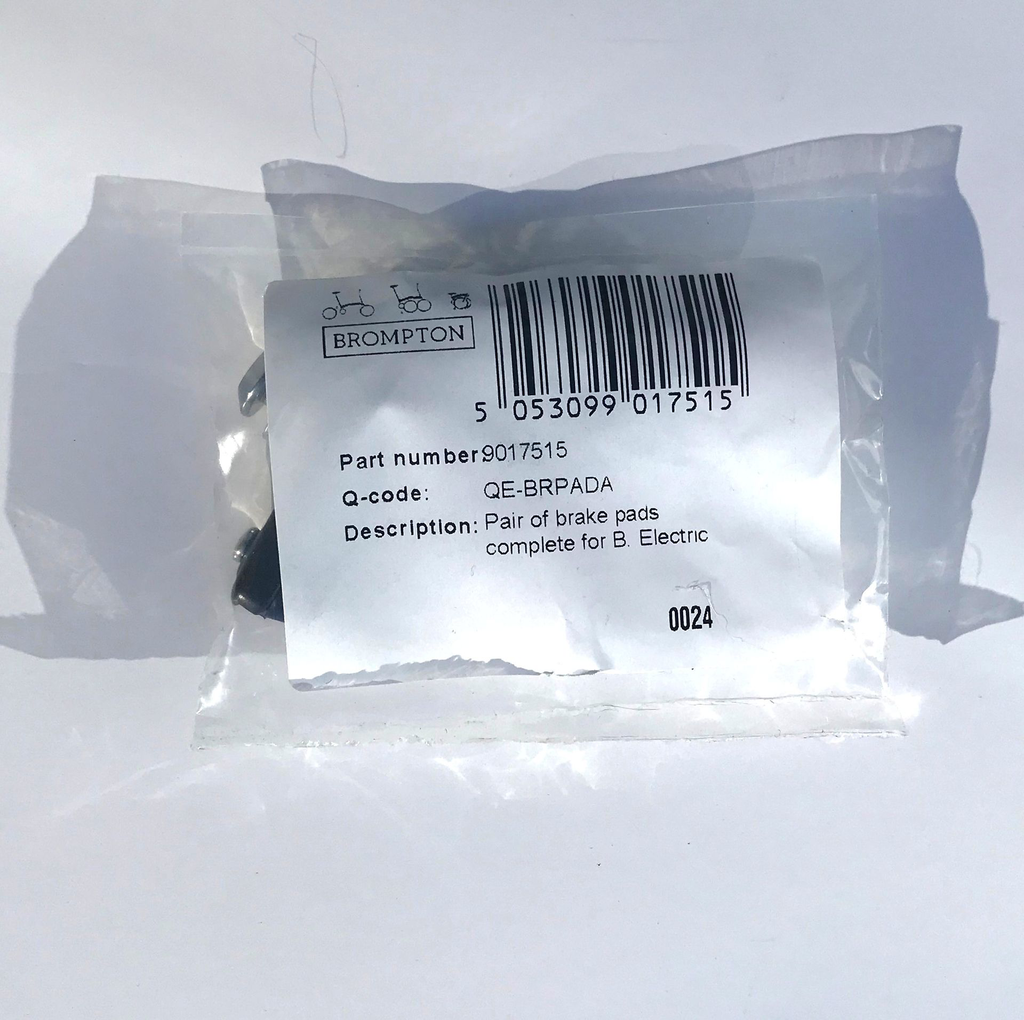

Brompton 2020 Q part code: Q100226
Brompton Q part code: QE-BRPADA
Brompton old Q part code: QBRPADA (pre-2019)
Brompton part number: 9017515
Brompton old part number: 9029273 (pre-2019)

Made in Switzerland (comm code 714999089)
