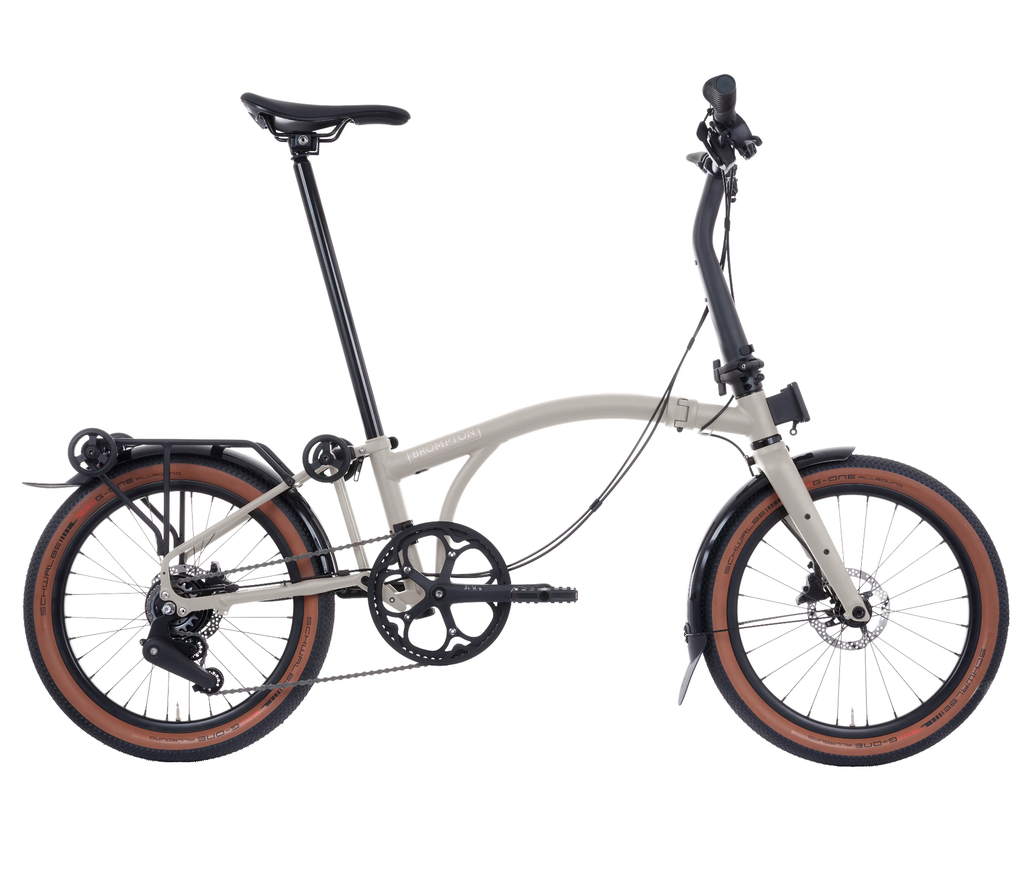

Brompton G Line folding bike

Brompton G Line - the Brompton with the 20 inch wheel
G Line
  • Colour - Traildust White
  • Size

Brompton G Line - 20 inch wheel size folding bike

The G Line - Gravel? Line range was introduced by Brompton with the 2024 lineup of bikes

It's now a very popular option

It has larger wheels than the traditional 16 inch Brompton size at 20 inches

Brompton G Line specification:

1/ Frame

The G Line - Gravel? Line range was introduced by Brompton with the 2024 lineup of bikes

Main Frame:

Steel

Rear frame / triangle:

Steel

Handlebar stem:

Alloy with water bottle mounting bosses

Front forks:

Alloy with mounting bosses

Folded size: 71cm wide x 68cm tall by 38cm deep (approx)

2/ Colour

At the time of launch in autumn 2024 the G Line was available in 3 colours:

  • Adventure Orange
  • Space Grey
  • Traildust White

For the 2026 model year a new colour was added in autumn 2025:

  • Forest Green

Main frame: Colour choice of Orange, Dark Grey, Off White or Dark Green - all the paintwork has a textured finish
Rear frame / triangle: Colour matches the main frame
Handlebar stem: Black
Front forks: Colour matches the main frame
Decal: Depending upon frame colour

3/ Size

Available in three sizes:

  • Small
  • Medium
  • Large

The G Line only has one handlebar type - ride position is dictated entirely by the stem length and seat post length
Handlebar width - 65cm

4/ Gears / drivechain

8 speed Shimano Alfine hub gear system with single 20T rear sprocket
54T front chainring - black (also available as 50T or 44T - we can change at no extra cost)
Brompton advance chain with connecting link - 114 links
Brompton flat platform pedals (the right one is removable)

5/ Front luggage system

The G line comes with a front carrier block fitted

6/ Mudguards / Rack

This bike comes with black mudguards and rack as standard to help keep you protected to some degree from the elements

7/ Roller Wheels

New larger roller wheels help keep the bike stable when folded

8/ Wheels / Tyres

20 inch wheel size

TRP / Tektro hydraulic disc brakes

The wheels have black hubs, black spokes and black rims

Presta / racing type valve

Schwalbe G One with tan wall (ETRTO size 54-406) - tubeless ready
Low rolling resistance and good puncture protection

If you would like to change to Continental Contact Urban tyres for lower rolling resistance and designed primarily for on-road use - we can make this change at no additional cost (note that the Contact Urban tyres can not be made tubeless)

9/ Saddle

Standard Brompton saddle 143mm wide

With lighting mount point underneath the saddle

10/ Seat height

The seat height is dictated by the bike size

Small size G Line bikes come with a Brompton standard length seatpost

Medium size G Line bikes come with a Brompton extended length seatpost (6cm longer than the standard length which means that the fully folded position is slightly higher)

Large size G Line bikes come with a telescopic seatpost

11/ Suspension

Along with the new G Line comes a new advance suspension block

12/ Lighting / Reflectors

Front and rear reflectors are included
It's easy to retrofit battery lighting such as:

  • Brompton Cateye VIZ150 rear light - mounts on the Brompton saddle
  • Brompton Lezyne G Line front light with bracket
  • Brompton G Line Be Seen light set





Colour Space Black, Forest Green, Adventure Orange, Traildust White
Size small, medium, large
