Orbea Occam 15x24x5 bearing

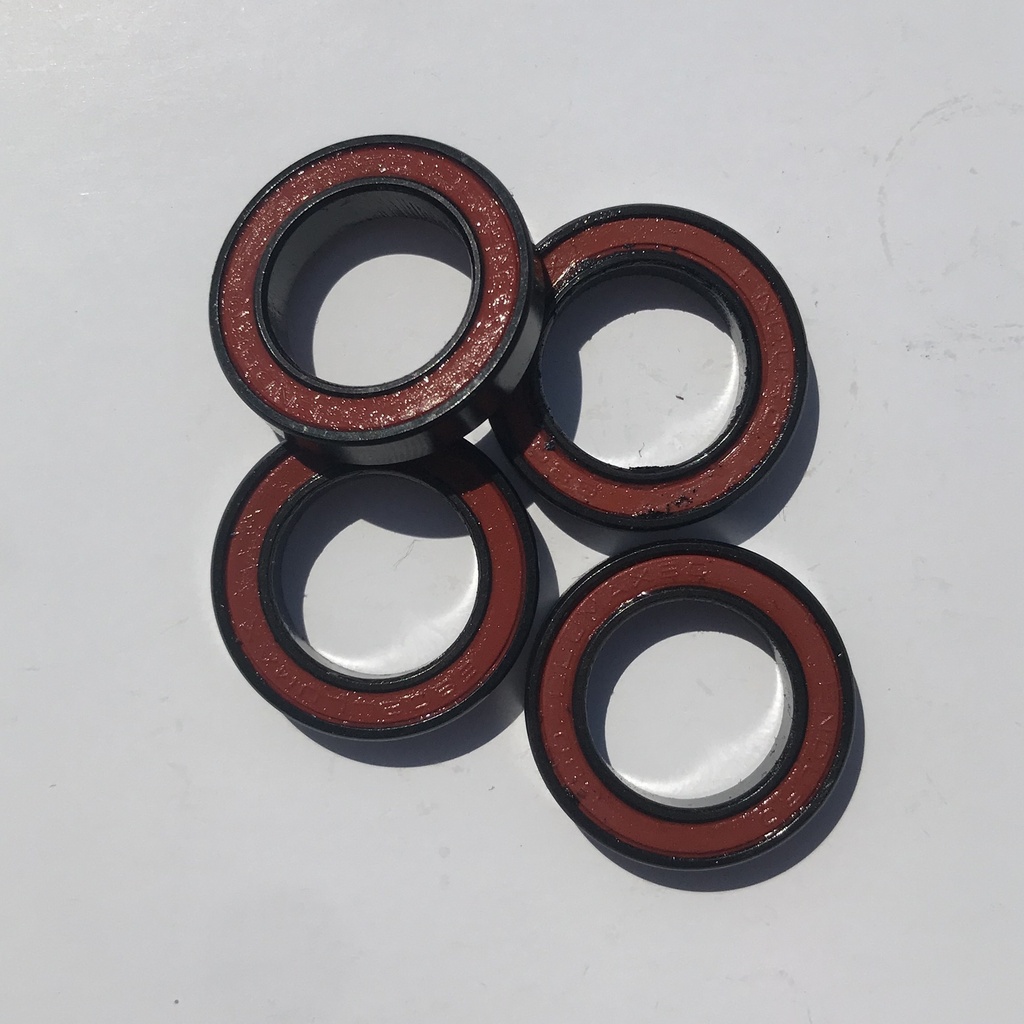

This is a single bearing - the picture shows multiple as they used to come in a kit!
This is part of the top link assembly on the full suspension 2017/2018 Orbea Occam
Compatible with the following bikes:
Orbea Occam TR 2018 aluminium and carbon
Orbea Occam AM 2018 aluminium and carbon
These bearings are part number 5 in the Occam exploded view diagram and hidden behind the Advanced Dynamics 15 NM bolt on the bike (pictured)
Two of these are used in the top link
Orbea Occam TR and AM 2018/2019 carbon
1 of these bearings is used as part of the main pivot - No 9 in the Occam carbon main pivot exploded parts diagram
Orbea Oiz 2017
2 of these bearings are used as part of the main pivot assembly (located just above the bottom bracket)
Orbea Rallon 2018/2019
1 of these bearings is used as part of the main pivot assembly - No 1 on the exploded parts view
2 of these bearings are used in the link assembly - No 9 on the exploded parts view
Orbea Oiz 2019 / 2020
2 of these bearings are used as part of the main pivot assembly, these are number 3 in the exploded diagram
Extra information:
The Enduro Numer is: 6802 LLU MAX B0
Colour: Black
If you are not sure if this is the right part for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.
On the Orbea website with the description: Bearing 15x24x5
