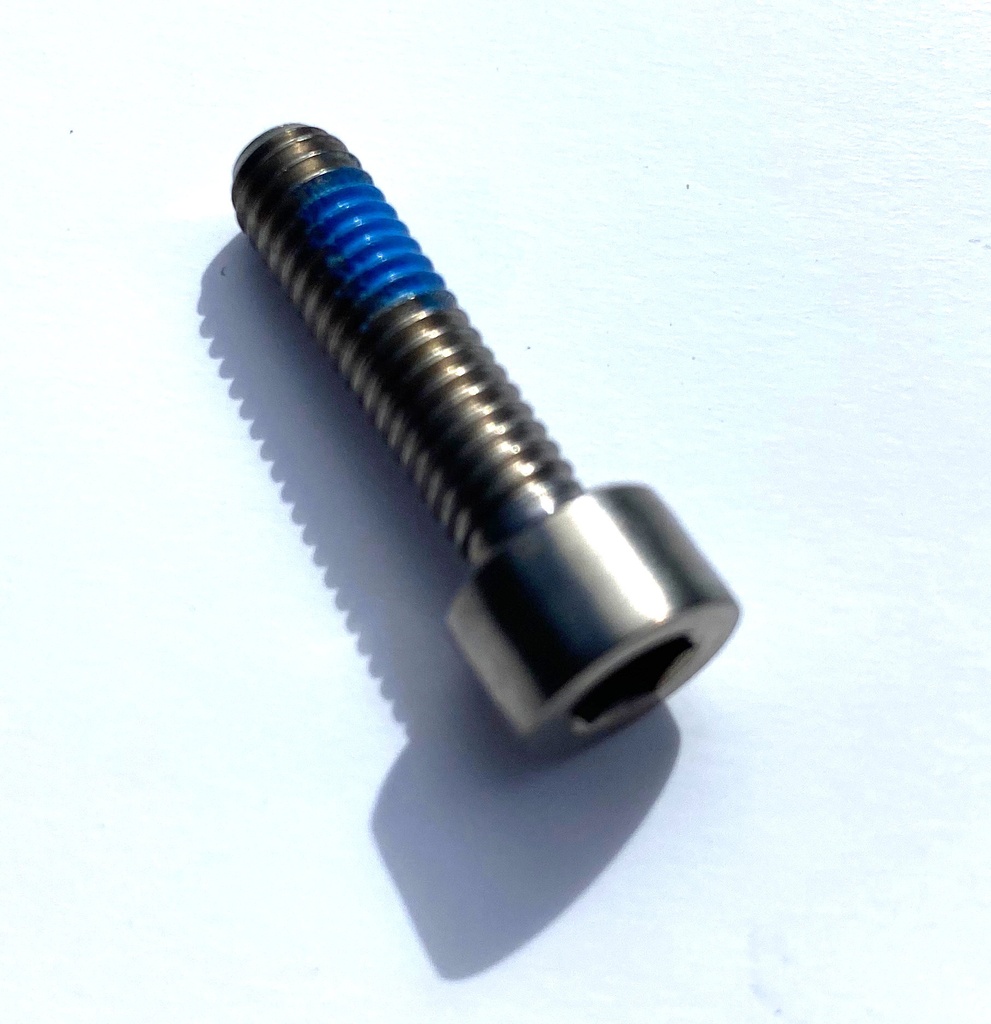

Intense spare part: Intense Cone Adjuster Bolt - M6 x 22mm - Titanium
This titanium cone adjuster bolt is used in conjunction with the expander bolt and cone adjuster and is used to mount the Lower box
Note: This is the titanium expander cone adjuster bolt only - you may also need the expander bolt, cone adjuster and main pivot bearing caps if you are replacing everything - see the list of kits below
To be adjusted to 14 Nm / 125 in-lbs, but please check your bike manual for exact torque settings. The attached technical manual shows the location of this part
This part is used on the following model bikes:
| Bike model | Year |
| Intense ACV | 2017 - 2018 |
| Intense Carbine | 2017 - 2020 |
| Intense Primer | 2016 - 2020 |
| Intense Primer S | 2020 |
| Intense Primer 275 | 2020 |
| Intense Primer 29 | 2020 |
| Intense Recluse | 2016 - 2018 |
| Intense Spider | 2016 - 2018 |
| Intense Sniper XC | 2019 - 2020 |
| Intense Sniper Trail | 2019 |
| Intense Sniper T | 2020 |
| Intense Tracer | 2017 - 2020 |
| Intense Uzzi | 2015 - 2016 |
Colour: silver / stainless steel
