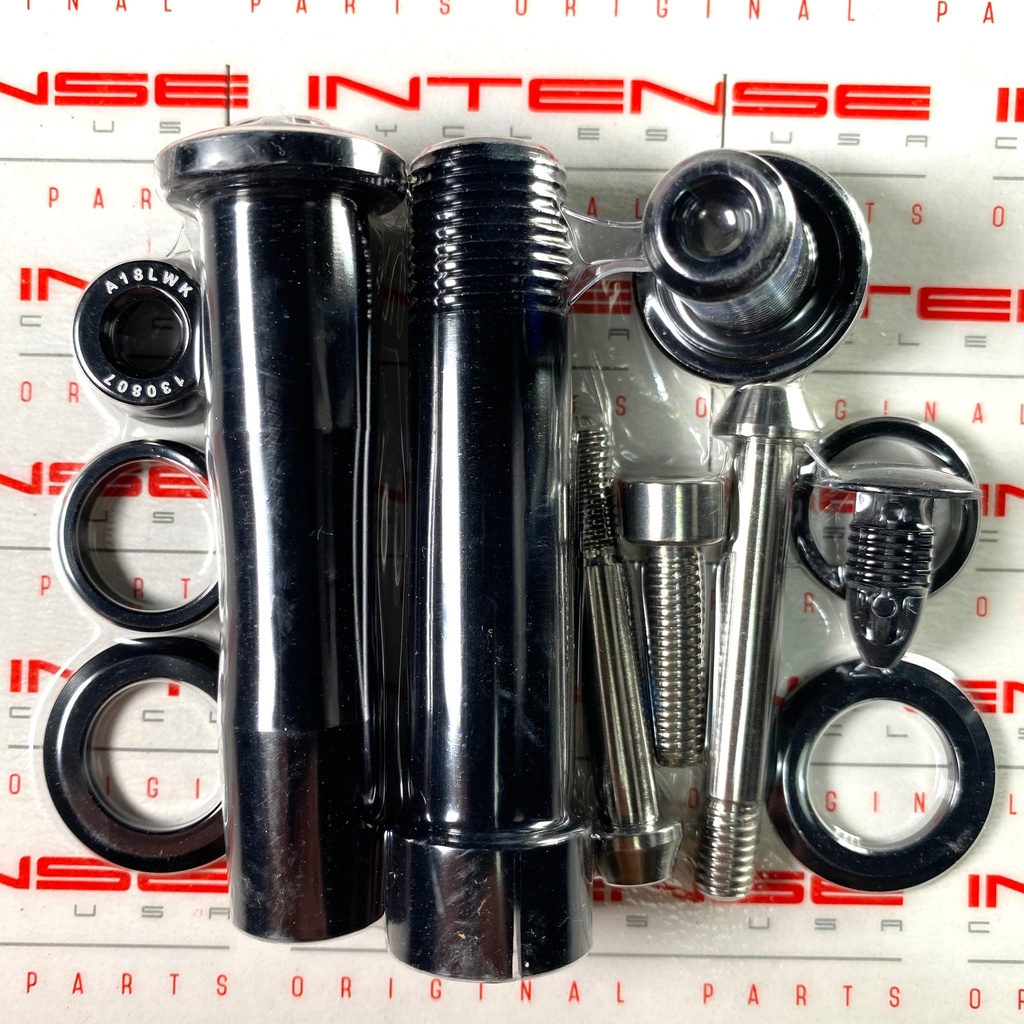

Intense upper link hardware kit Primer / Recluse / Spider / ACV
This is the titanium upper link hardware kit for the Primer / Recluse / Spider and ACV and is compatible with the following models:
Intense Primer - 2017 to 2020
Intense Recluse - 2017 to 2018
Intense Spider - 2017 - 2018
Intense ACV - 2017 to 2018
This kit includes the following Intense parts:
Qty |
Part No |
Description |
Note |
| 2 | 130765 | Bearing Cap 24mm | |
| 1 | 130780 | Upper Pivot Axle Carbon Blk | |
| 1 | 130785 | Shoulder Bolt Fine-Thread | |
| 2 | 130789 | Upper Axle Spacer Carbon | |
| 1 | 130791 | Main Pivot Bolt 1.5t Expander Blk | |
| 1 | 130807 | Cone Adjuster Spacer 8.3mm | |
| 1 | 140038 | Trim Plug 15mm YF | |
| 1 | 410032 | Bolt SHCS M6xP1.0x22L Titanium | |
| 1 | 410050 | Bolt SHCS M6x40 Titanium | |
| 1 | 410051 | Bolt SHCS M6x45 Titanium |
Please see the attached technical diagram of the Primer for where these parts are located
Intense kit number: IT340226
