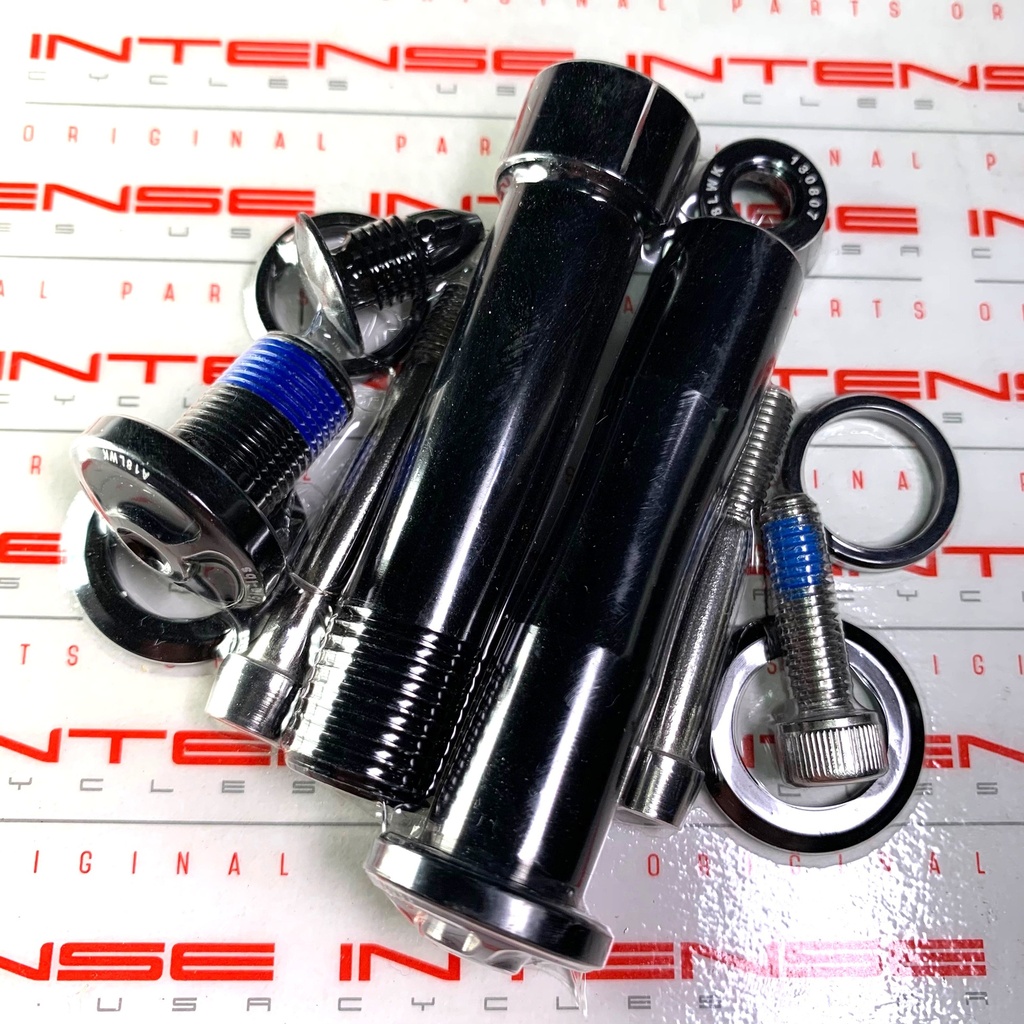

Intense Primer/Recluse/Spider/ACV Upper Link Hardware Kit - 2017-2020
This upper link kit contains the following:
Qty |
Item |
Description |
Note |
| 2 | 130765 | Bearing Cap 24mm OD S275C Black | |
| 1 | 130780 | Upper Pivot Axle Carbon Black | Part stamped with number |
| 1 | 130785 | Shoulder Bolt Fine-Thread Black | Part stamped with number |
| 2 | 130789 | Axle Upper Spacer Carbon Bikes | |
| 1 | 130791 | Main Pivot Bolt 1.5t Expander Black | Part stamped with number |
| 1 | 130807 | Cone Adjuster Spacer 8.3mm (Short) Blk | Part stamped with number |
| 1 | 140038 | Intense box link pivot plus - 15 mm | |
| 1 | 410009 | Intense cone adjuster bolt M6x22mm | |
| 1 | 410053 | Allen key bolt M6x40mm stainless steel for Shock Mount | Was code 410050 |
| 1 | 410054 | Allen key bolt M6x45mm stainless steel for Shock Mount |
This kit is for use on the lower link of the following bikes
Model |
Model year |
| Intense ACV | 2016-2019 |
| Intense Primer | 2016-2019 |
| Intense Recluse | 2016-2019 |
| Intense Spider | 92016-2018 |
Also known as IT340221
Colour: Black
