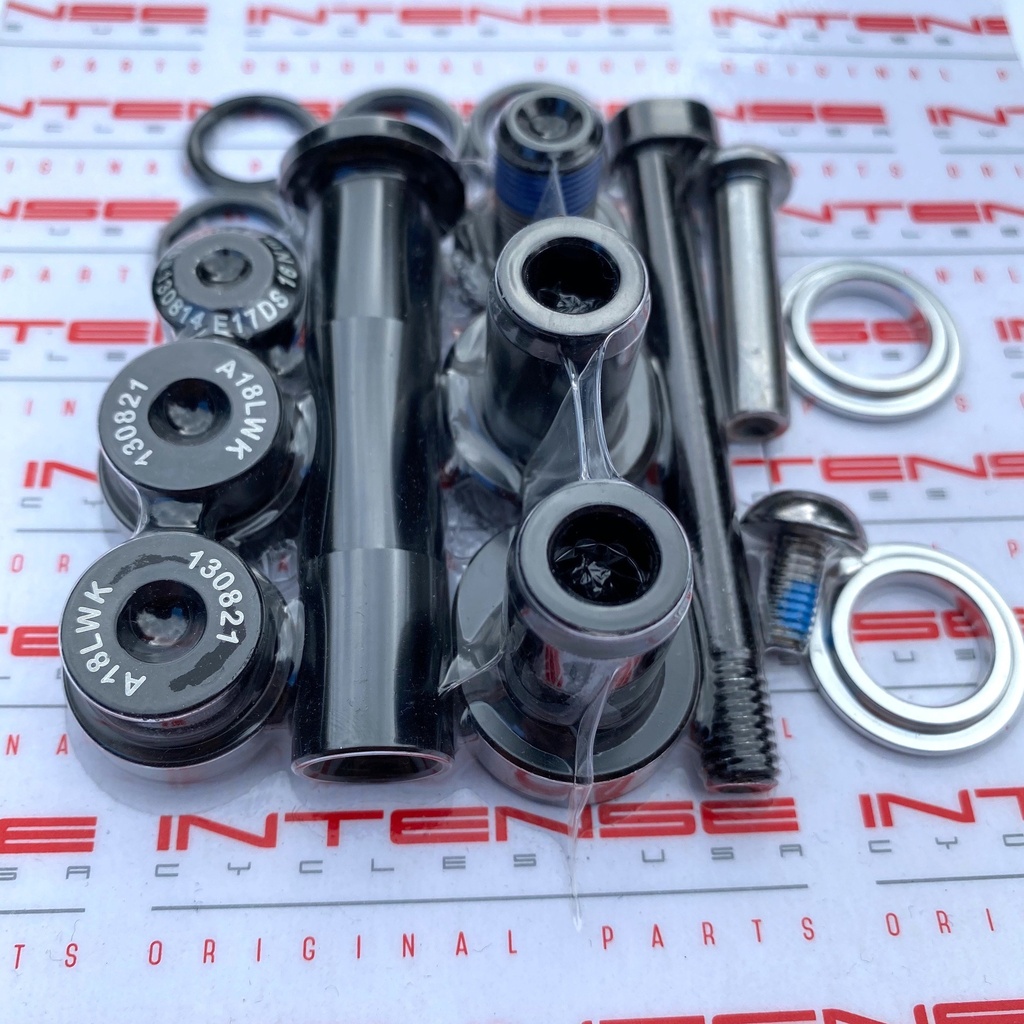

Intense Carbine Upper Link Hardware Kit
This is the upper link hardware kit for the Intense Carbine from 2017 - 2020
This kit contains the following parts:
| Qty | Part No | Description | Note |
| 1 | 130780 | Upper Pivot Axle for carbon bikes | |
| 1 | 130785 | Shoulder Bolt Fine-Thread | |
| 2 | 130789 | Upper Axle Spacer for carbon bikes | |
| 1 | 130803 | Reducer D-lock | also used on the 2017 Tracer 275C |
| 1 | 130805 | Reducer Drive Side | also used on the 2017 Tracer 275C |
| 1 | 130813 | Bolt D-Lock | also used on the 2017 Tracer 275C |
| 2 | 130814 | Nut Drive Side SS | also used on the 2017 Tracer 275C |
| 2 | 130821 | Spacer 2017 C29 Reducer F / Ring Groove | |
| 2 | 130835 | Bearing cap Carbine SIL | |
| 2 | 140044 | O Ring 13.8x2.4mm | |
| 1 | 410055 | Bolt SHCS M8 Female C29 Ft Shock Mount | |
| 1 | 410056 | Bolt SHCS M6 Male C29 Ft Sock Mount |
Colour: Black
Also known as IT340220
