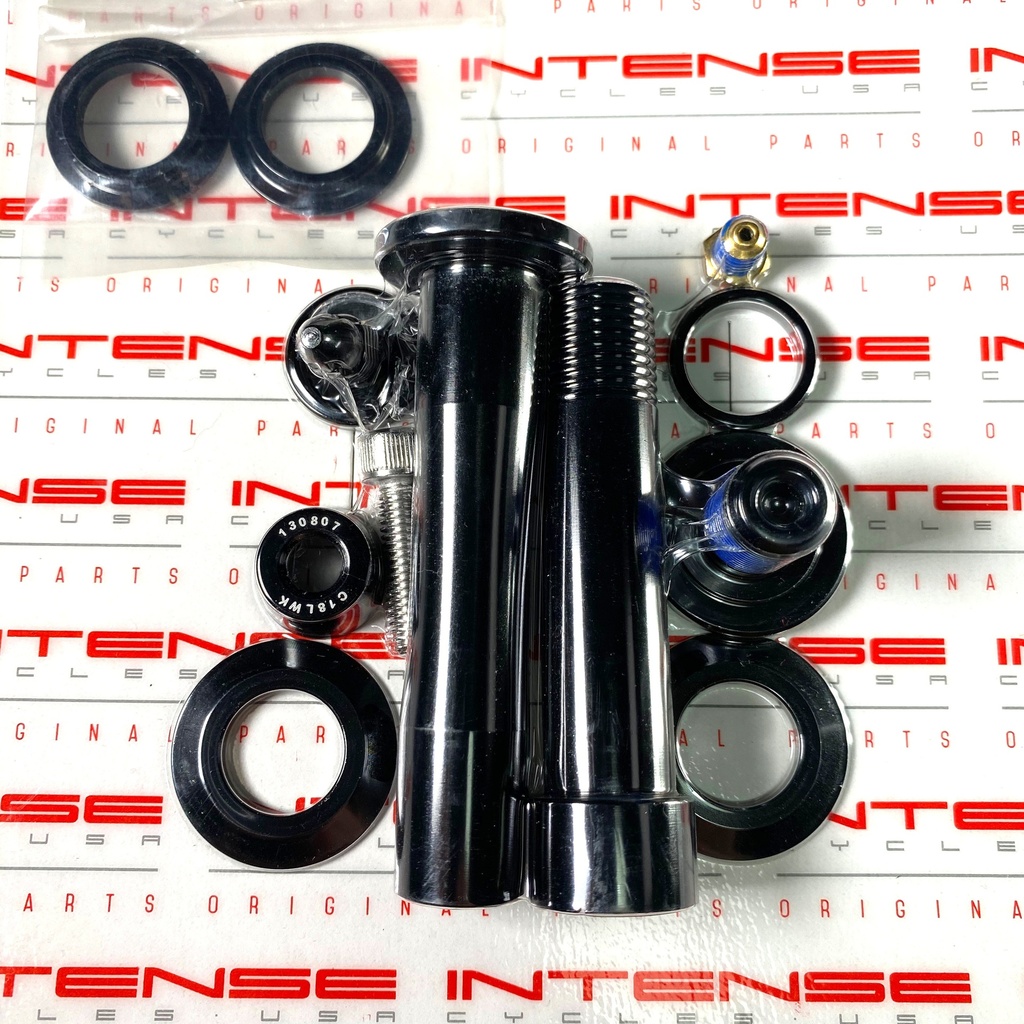

Intense Carbine / Tracer lower link hardware kit
This is the lower link hardware kit for the Intense Carbine and Tracer, it is compatible with the following models:
- Intense Carbine 2017 - 2020
- Intense Tracer 2017 - 2020
the kit includes the following parts:
| Part No | Qty | Description |
| 130778 | 2 | Lower link Bearing Cap Blk TW |
| 130860 | 2 | Pivot Axle Spacer Tracer |
| 130791 | 1 | Main Pivot Bolt 1.5t Expander Blk TW |
| 130800 | 1 | Axle Lower Pivot 2017 Tracer 275C Blk TW |
| 130806 | 1 | Shoulder Bolt Fine-Thread 2017 Tracer Blk Lower |
| 130807 | 1 | Cone Adjuster Spacer 8.3mm (Short) Blk TW |
| 140038 | 1 | Trim Plug 15mm YF |
| 401011 | 1 | Zerk Fitting M6 x 1.0x 7 |
| 410009 | 1 | Bolt SHCS M6x22 |
Please see attached technical diagram of the Intense Tracer for the location of the parts in this kit
Kit Part Number: IT340199
