Intense Primer upper link hardware kit (2020 onwards models)

Intense Primer upper link stainless steel hardware kit for models from 2020  (Please check your model from the list below)

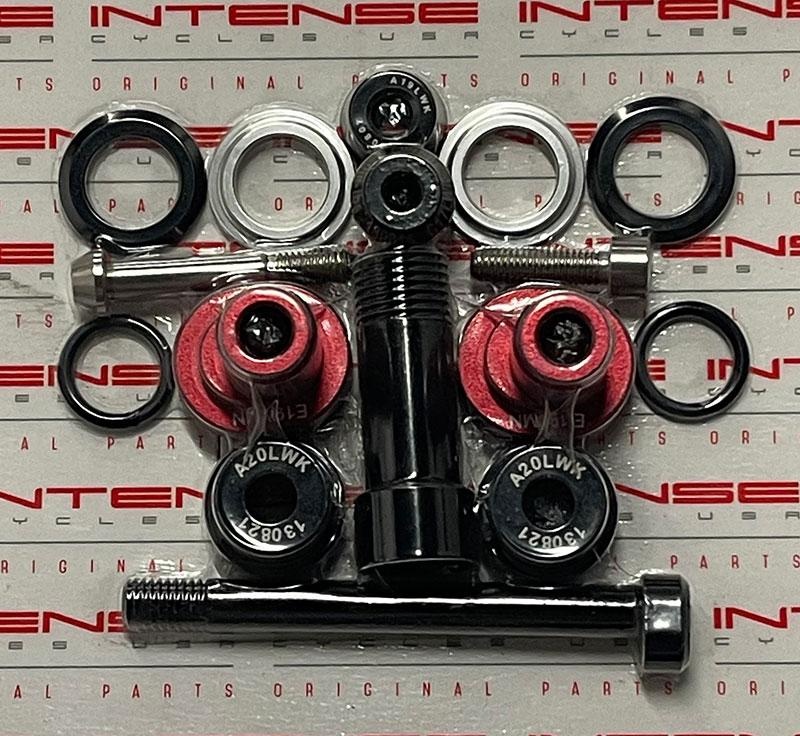

Intense Primer upper link stainless steel hardware kit

This is a kit from Intense and contains the following parts:

Code Description Quantity
130765 Bearing cap 24 OD Black 2
130807 Cone Spacer Adjuster 8.3mm (Short) BLK 1
130821 Spacer 2017 C29 Reducer F/Ring Groove 2
130835 Cap Bearing Carbine Silver  2
130842 Collet Bolt Top Link M29 1
130865 Flip Chip RT D-Lock Reducer Primer 1
140044 O Ring 13.8 x 2.4mm 2
410032 Bolt SHCS M6 x P1.0 x 22L Titanium 1
410050 Bolt SHCS M6 x 40 Titanium S275C SL 1
130814 Nut Drive Side SS 2017 Tracer 275 1
130900 Flip chip d-lock reducer Red  2

Please check the below list for Intense bike compatibility

Bike model  Years
Intense Primer 275   2020 and newer
Intense Primer 29   2020 and newer
Intense Primer S  2020 and newer

Intense Kit number: IT150024
