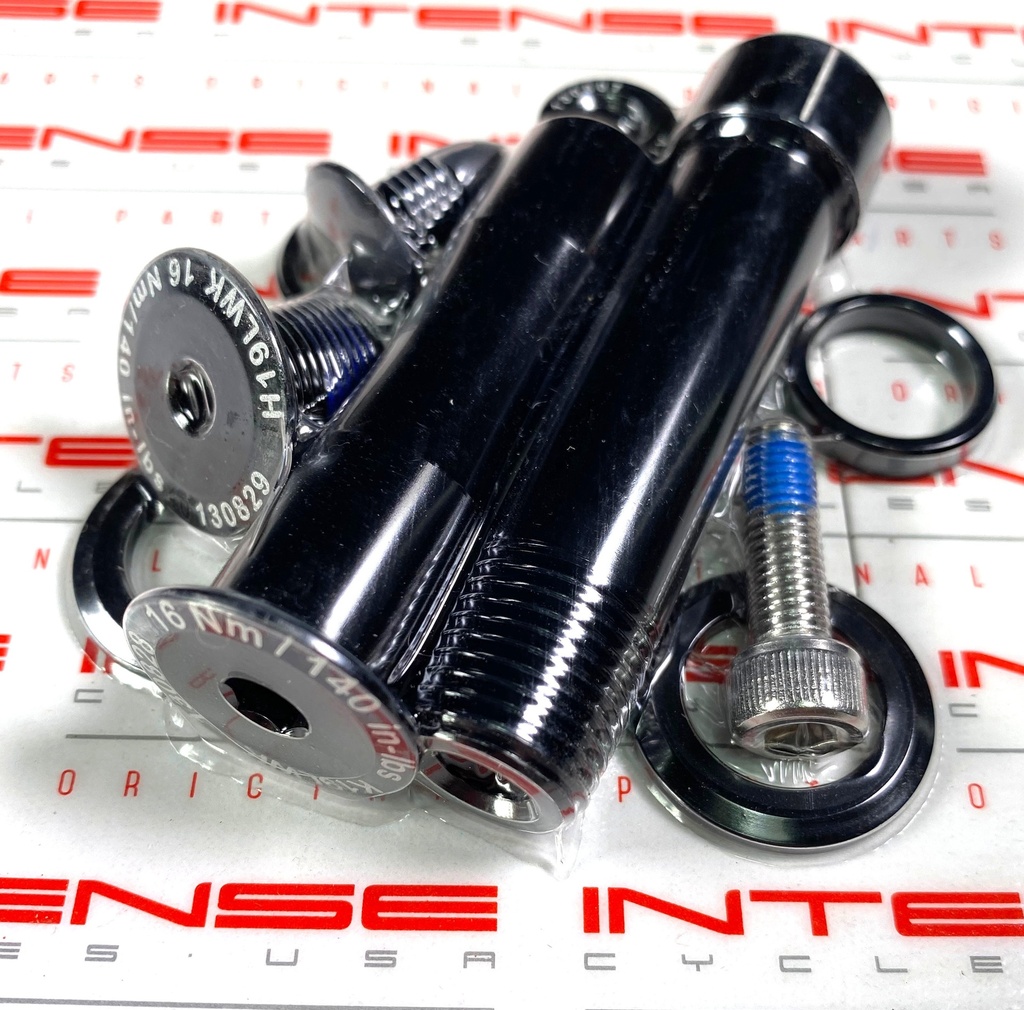

Intense Sniper lower link hardware kit
This is a complete lower link hardware kit for the Intense Sniper, it is compatible with the following models:
- Intense Sniper XC - 2019 - 2022
- Intense Sniper Trail - 2019
- Intense Sniper T - 2020
The kit includes the following parts:
Bearing cap 24mm OD S275C Black - Part number 130765 x 2 (number 1 in the attached diagram)
Main pivot bolt 1.5t expander Black TW - Part number 130791 x 1 (number 2 in the attached diagram)
Cone adjuster spacer 8.3mm (short) Black TW - Part number 130807 x 1 (number 3 in the diagram)
Axle pivot Sniper - Part number 130828 x 1 (number 7 in the diagram)
Shoulder bolt Sniper - Part number 130829 x 1 (number 8 in the attached diagram)
Spacer lower axle 19 OD x 15mm ID x 4mm Sniper - Part number 130831 x 2 (number 10 in the diagram)
Lower link pivot plug / Trim plug 15mm YF - Part number 140038 x 1 (number 17 in the attached diagram)
Bolt sprocket head SHCS M6x22 - Part number 410009 x 1 (number 20 in the diagram)
Part number: IT150007
Attached is a diagram of the Sniper T to show the location of these parts
