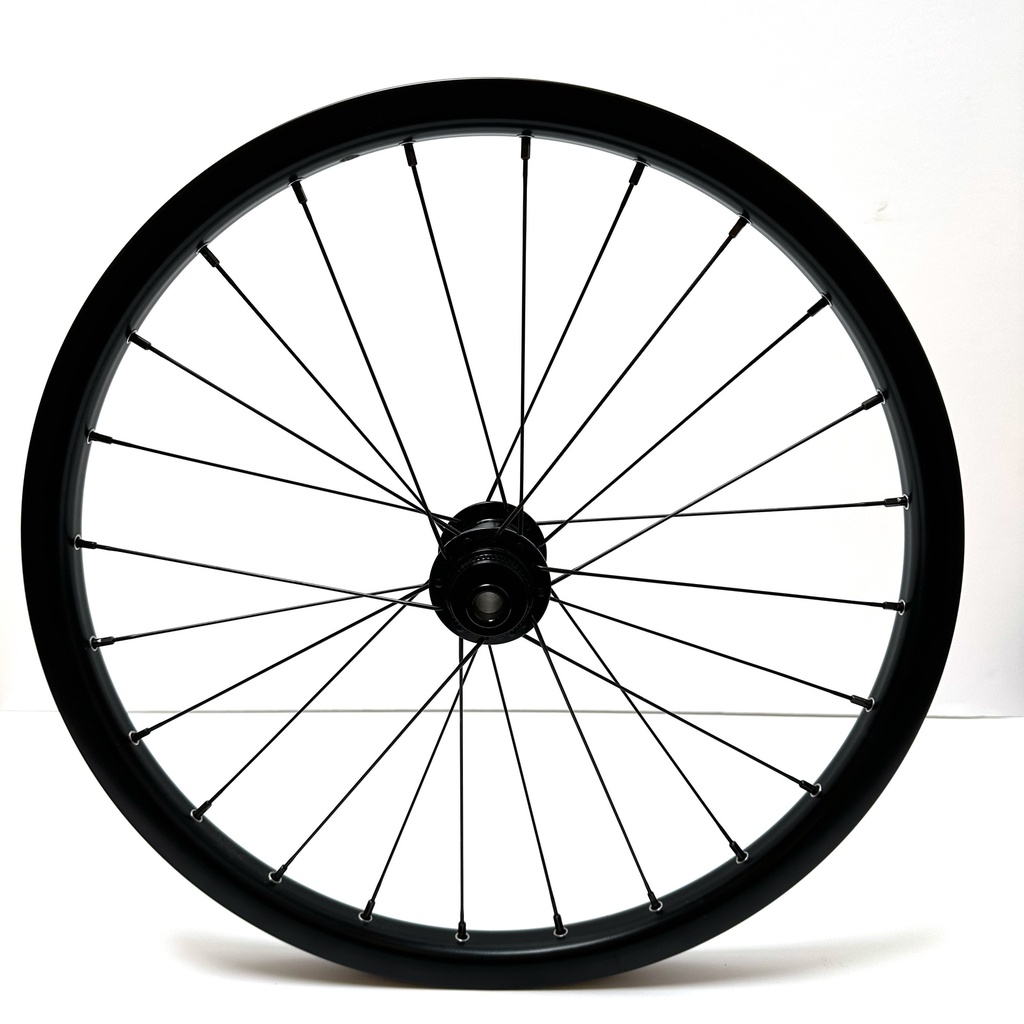

Brompton G Line 20 inch front wheel - Standard
This is the 20 inch front wheel for the Brompton G Line and G line electric, excluding fixings, it comes taped ready for tubeless conversion
Key features:
- 24 spokes
- 6mm presta valve hole
- Taped ready for tubeless use
- Single butted spokes
- Double walled rim with clincher
- All black, spokes, hub and rim
- Weight approx 700g
- 100mm OLD hub for center lock disc rotors
- Rim Internal rim 22.6mm
- Rim external 28mm
Brompton Q part code: Q103115
Removal
To remove your front wheel:
- undo the axle bolt using a 6mm Allen (Hex) key
- Remove the axle bolt completely from the wheel
- Guide the wheel clear of the fork
- Do not squeeze the brake lever while the wheel is out as this will close the brake pads
Fitting
The foot the wheel:
- Ensure the wheel is the correct way round with the brake rotor ready to fit into the pads on the left had side of the fork
- Guide the wheel in place
- Fit the axle from the righthand side of the bike to thread in place, tighten to 11Nm
