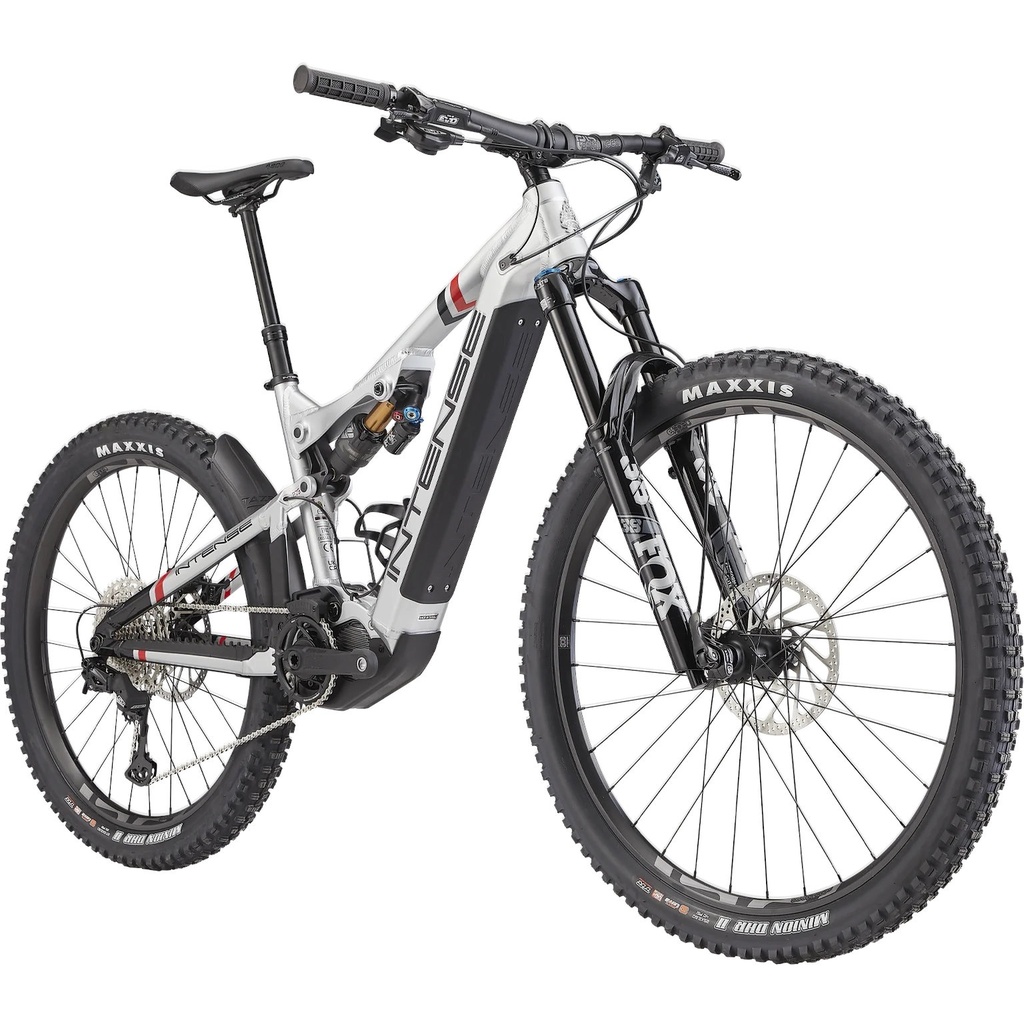

Intense 2023 Tazer Alloy Pro build e-mountain bike - medium
Intense have gone back to their roots with this bike and combined all the good bits from the carbon Tazer in this hydroformed 6061 T6 alloy version, providing durability built-in as standard. The Tazer Alloy has been upgraded to the Universal Derailleur Hanger (UDH) and SRAM T-Type
Some of the main features of this model are:
- Alloy frame - now with 5 year warranty
- 160mm of travel front and 155mm rear
- Shimano’s STEPS EP800 motor system
- Fox Float 38 Factory up front and Fox Float DPX2 at the rear
- eThirteen Vario Infinite dropper seatpost 150 mm drop
- It is a mullet with 27.5+ inch wheel on the rear and a 29 on the front
Framest:
- Tazer Performance Alloy Frame.
- Alloy top link, internal shift, dropper, post, brake, display unit routing, E*Spec Chainguide mount pattern, flak guard armor, integrated mud guard
- 160mm front travel - FOX Performance Elite Float 38, 29" 160mm, GRIP 2 Damper, 51mm offset
- 155mm rear travel - FOX Float X2 Factory 185x55 2-position
- Universal Derailleur Hanger (UDH), SRAM T-Type compatibility.
Colours:
This one is raw aluminium
Drivetrain:
The Pro build version of the Trazer comes with a complete Shimano 12 speed, specs as follows:
- Shifters/Triggers: TRP SL-M9050-12R EVO 12-speed
- Rear derailleur: TRP RD-M9050-L EVO 12-speed
- Crankset: e*thirteen e*spec Plus, 34 tooth chainring, 165mm length
- Cassette: Shimano Deore CS-M6100 12-speed, 10-51T
- Chain: KMC E12 Turbo 12-speed
- Chain catcher: e*thirteen e*spec Plus
Sizes:
This is a medium
| Size | Seat Tube | Standover Height | Rider Size |
| Small | 395mm | 814mm | 5ft 0in to 5ft 6in |
| Medium | 420mm | 819mm | 5ft 4in to 5ft 10in |
| Large | 445mm | 826mm | 5ft 8in to 6ft 0in |
| Extra Large | 470mm | 831mm | 5 ft 11in to 6ft 6in |
Although the above gives a rough size guide - there is a simple sizing on the Intense box! (You need to be able to stand over the highest part of the crossbar with a one inch learance between the crossbar and your crotch - we think this is a safety feature!)
Wheels / wheelset:
- Front:e*thirteen e*spec 30mm, 110x15mm, 29" front
- Rear: e*thirteen e*spec 35mm, 148x12mm, 27.5" rear
- Hubs: INTENSE E-MTN Alloy Hubs
- Front Tyre: MAXXIS Minion DHR II, 3C, Exo+, Tubeless-ready 29" x 2.60"
- Rear Tyre: MAXXIS Minion DHR II, 3C, Exo+, Tubeless-ready 27.5" x 2.80"
Components:
- Saddle: SDG Bel-Air V3
- Seatpost: e*thirteen Vario Dropper 31.6mm / 150mm (SM)
- Handlebar: eThirteen base, 800mm width, 35mm clamp diameter
- Stem: eThirteen base, 40mm length, 35mm clamp
- Headset: INTENSE ZS49/ZS56
- Brakes / disks: TRP DH-R EVO, HD-M846 / 203mm rotors
- Handlebar Grips: Intense lock-on
- Pedals: Not included
Motor:
- Modes: Boost, Trail, Eco, Walk Assist
- Motor:Shimano STEPS EP800
- Battery: BT-E8036, for STEPS, 630Wh Battery lock w/ 2 keys
- Battery capacity: 630 Wh
- Display: Shimano SC-EM800
- Switch: Shimano SW-EM800-L
